Product Information

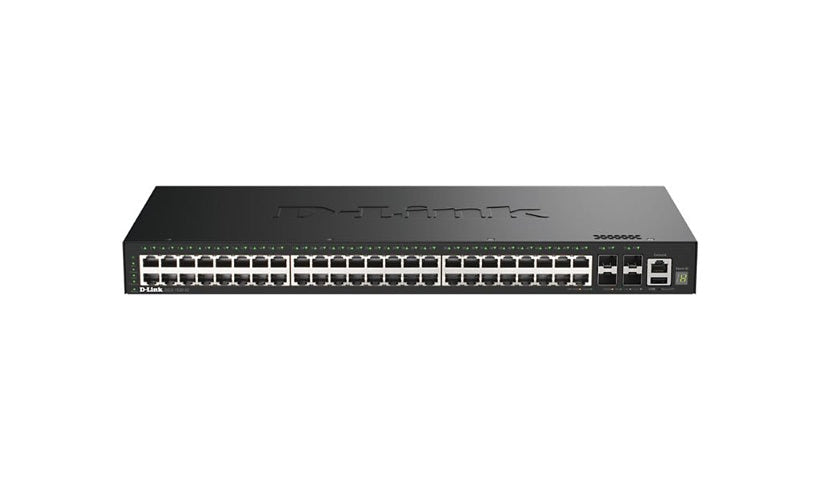

D-Link's DGS-1530-52 is a stackable smart managed rack switch with 48 Gigabit ports and four 10G SFP+ ports. It offers 176 Gbps of switching capacity, stacks up to nine units at 80 Gbps and adds 6 kV surge protection and Energy Efficient Ethernet.
Key Features
- 48 x 10/100/1000 RJ-45 ports
- 4 x 10G SFP+ ports
- 176 Gbps switching, 130.95 Mpps
- Stack up to 9 units, 80 Gbps
- 6 kV surge protection
- Rack mount, USB port
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link DGS
Model: 1530-52
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3
Routing Protocol: IGMP, IGMPv2, IGMPv3, MLD, MLDv2, Static IP routing
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
Encryption: TLS 1.2
Performance: Forwarding performance (64-byte packet size): 130.95 Mpps, Stacking bandwidth: 80 Gbps, Switching capacity: 176 Gbps
Capacity: MLD groups: 1024, Packet buffer size: 1.5 MB, Static ARP entries: 255, VLAN groups: 4094
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10240 bytes
Stackable: Stackable
Features: 2 fans, 6KV Surge protection, Auto-uplink (auto MDI/MDI-X), BPDU Filter, Bridge protocol data unit (BPDU), Class of Service (CoS), D-Link Discovery Protocol (DDP), Denial of Service (DoS), Energy-Efficient Ethernet (EEE), Ethernet Ring Protection Switching (ERPS), Flow mirroring, Generic VLAN Registration Protocol (GVRP), Half/full duplex mode, IGMP snooping, LACP support, Link Aggregation, Loop Guard, Loopback detection, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), Multiple Spanning Tree Protocol (MSTP) support, Network Timing Protocol (NTP) 3, Network Timing Protocol (NTP) 4, Port mirroring, Private VLAN, Quality of Service (QoS), Rapid Reconfiguration of Spanning Tree (RSTP), Root Guard, Spanning Tree Protocol (STP) support, Store and forward, VLAN trunking, Voice VLAN, Weighted Deficit Round Robin (WDRR), Weighted Random Early Detection (WRED), Weighted Round Robin (WRR)
Smart: Yes
Max Units In A Stack: 9
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 10/100/1000
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+
Interface Provided: 1 x management RJ-45, 1 x USB 2.0 Type A, 4 x 1000Base-X SFP+, 48 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: 68 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
MTBF: 330,520 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Height (Rack Units): 1
Status Indicators: Console, Link/activity/speed, Power, RPS (Redundant Power Supply)
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 8.3 inch
Weight: 7.05 lbs
Certifications and Listing
Compliant Standards: BSMI, CB, cUL, EMC, FCC, IC, LVD, RCM, UKCA, VCCI
Compliant Standards: IEEE 802.11d, IEEE 802.11p, IEEE 802.11q, IEEE 802.11s, IEEE 802.11v, IEEE 802.11w, IEEE 802.1AX, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
