Product Information

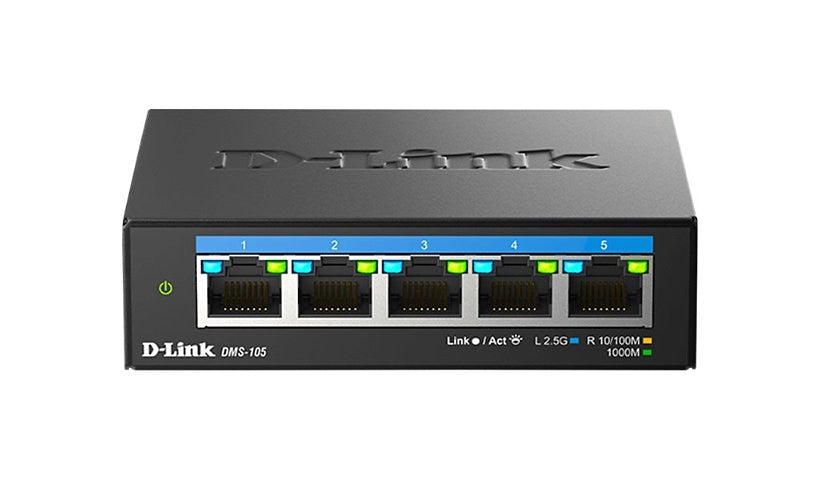

D-Link's DMS-105 is a fanless metal switch with five 2.5G ports and 25 Gbps of capacity. It is plug and play, supports QoS, IGMP snooping and D-Link Green power saving, and can sit on a desk or mount on a wall.
Key Features
- 5 x 2.5G RJ-45 ports
- 25 Gbps switching capacity
- Unmanaged, plug and play
- QoS and IGMP snooping
- Fanless metal housing
- Desktop or wall mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link
Model: DMS-105
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Switching Type: 2.5 Gigabit Ethernet
Manageable: No
Performance: Packet forwarding rate: 18.6 Mpps, Switching capacity: 25 Gbps
Capacity: Packet buffer size: 8.1 MB
MAC Address Table Size: 4K entries
Features: Auto-negotiation, Auto-sensing per device, Auto-uplink (auto MDI/MDI-X), D-Link Green Technology, Energy-Efficient Ethernet (EEE), Fanless, Flow control, IGMP snooping, Link Fault Detection, Metal housing, Quality of Service (QoS), SOHO (Small Office/Home Office), Store and forward
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000/2.5G
Interface Provided: 5 x 10/100/1000/2.5G RJ-45
Power
Device Type: External power adapter
Provided Voltage: 12 volt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 90% RH
MTBF: 765,190.81 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 1.1 inch
Width: 4 inch
Depth: 3.2 inch
Weight: 8.42 ounce
Certifications and Listing
Compliant Standards: BSMI, BSMI Class B, FCC Class B certified, IC Class B, LVD, NDAA, Plug and Play, RCM Class B, RoHS, VCCI Class B
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: Limited Lifetime
Service & Support Details: Limited warranty - lifetime
