Product Information

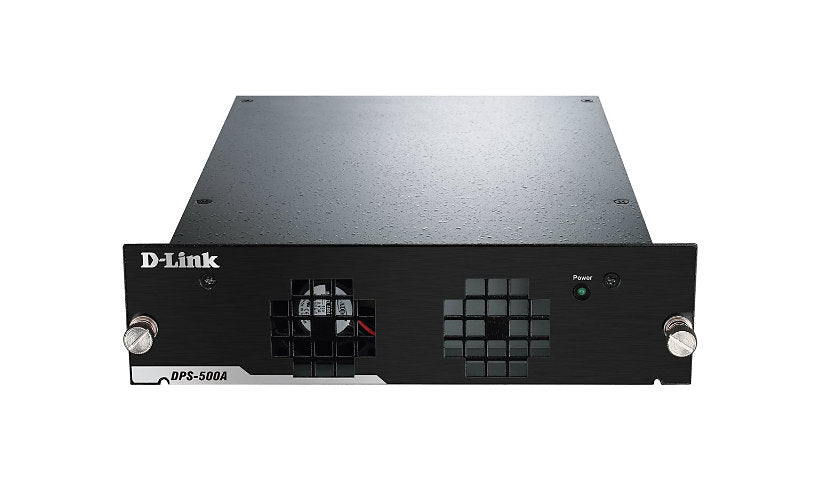

The D-Link DPS-500A is a 140 W redundant power supply (RPS) that keeps a D-Link switch running if its internal power supply fails. It outputs +5 and +12 V, accepts 90 to 264 V AC at 47 to 63 Hz and has an MTBF of 400,000 hours. It is listed for the DGS-3630-28SC, 28TC and 52TC and the xStack DGS-3120-48TC, DGS-3420-28SC, 28TC and 52T, DGS-3450 and DGS-3620-28SC, 28TC and 52T.
Key Features
- 140 W redundant PSU
- +5 and +12 V output
- 90 to 264 V AC input
- For D-Link xStack
- Also DGS-3630 series
- 400,000 hour MTBF
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link
Model: DPS-500A
Product Type: Power Supply
Subcategory: Power supplies
Compatibility Specs: D-Link DGS 3630-28SC, 3630-28TC, 3630-52TC ¦ D-Link xStack DGS-3120-48TC, DGS-3420-28SC, DGS-3420-28TC, DGS-3420-52T, DGS-3450, DGS-3620-28SC, DGS-3620-28TC, DGS-3620-52T
Packaged Quantity: 1
Color Category: Black
Power
Input Voltage Range: AC 90 - 264 V
Required Voltage: AC 115/230 volt
Frequency: 47 - 63 hertz
Power Provided: 140 watt
Power Supply Compatibility: Network hardware
Provided Voltage: +5, +12 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 10 - 90%
MTBF: 400,000 Hours
Dimensions and Weight
Height: 1.7 inch
Width: 6.8 inch
Depth: 10.1 inch
Weight: 3.33 lbs
Certifications and Listing
Compliant Standards: CSA, cUL, EN 60950, FCC Class B certified, UL 60950
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
