Product Information

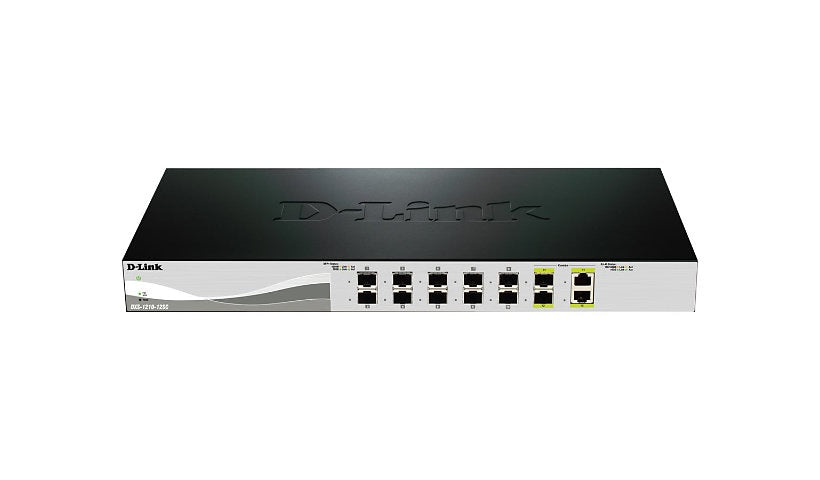

D-Link's DXS-1210-12SC is a 10G web smart switch with ten SFP+ ports and two combo 10GBASE-T/SFP+ ports. It offers 240 Gbps of switching capacity with ACLs, bandwidth control and D-Link Green power saving, and sits on a desk or mounts in a rack.
Key Features
- 10 x 10G SFP+ ports
- 2 x combo 10GBASE-T/SFP+ ports
- 240 Gbps switching, 178.56 Mpps
- Web smart, ACL, QoS
- D-Link Green
- Desktop or rack mount
Product Information
Brand: D-Link
Manufacturer: D-Link
Product Line: D-Link Web Smart
Model: DXS-1210-12SC
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black, Gray
Network and Communication
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Remote Management: CLI, HTTP, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, Telnet
Routing Protocol: Static IPv4 routing, Static IPv6 routing
Authentication Method: Extensible Authentication Protocol (EAP), Internal user database, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2), TACACS+
Encryption: PEAP, SSL, SSL 2.0, SSL 3.0, TLS, TTLS
Performance: Forwarding performance: 178.56 Mpps, Switching capacity: 240 Gbps
Capacity: ACL entries: 512, ACL rules: 512, ARP entries: 128, IGMP groups: 1000, IPv4 routes (static): 32, IPv6 routes (static): 32, QoS hardware queues per port: 8
MAC Address Table Size: 16K entries
Jumbo Frame Support: 9KB
Features: Access Control List (ACL) support, Auto-uplink (auto MDI/MDI-X), Bandwidth control, BOOTP support, Broadcast Storm Control, Cable Diagnostics Function, Class of Service (CoS), D-Link Green Technology, Deficit Round Robin (DRR), Deficit Weighted Round Robin (DWRR), DHCP client, DHCP relay, DHCP server, DHCP snooping, DiffServ Code Point (DSCP) support, DoS attack prevention, Dynamic ARP Inspection (DAI), Dynamic VLAN Support (GVRP), Ethernet Ring Protection Switching (ERPS), Flow control, Host based access control, IGMP snooping, IP source guard, IP-MAC binding, LLDP support, MLD snooping, Multicast Storm Control, Multiple Spanning Tree Protocol (MSTP) support, Port based access control, Port mirroring, Port Security, Quality of Service (QoS), Rapid Spanning Tree Protocol (RSTP) support, Safeguard Engine, SNMP trap, SNTP support, Spanning Tree Protocol (STP) support, Store and forward, Strict Priority Queuing (SPQ), System log, Trivial File Transfer Protocol (TFTP) support, Type of Service (ToS), Unicast Storm Control, VLAN support
Connectivity
Ports: 12
Port Quantity: 10
Port Type: 10 Gigabit SFP+
Ports (2nd) Quantity: 2
Ports Type (2nd): Combo 10 Gigabit SFP+
Interface Provided: 12 x 10Gbit LAN SFP+, 2 x 10GBase-T RJ-45
Power
Device Type: Internal power supply
Frequency: 50/60 hertz
Power Consumption Operational: 25.22 watt
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 8.3 inch
Weight: 6.02 lbs
Certifications and Listing
Compliant Standards: BSMI, C-Tick, CB, CCC, cUL, FCC, VCCI
Compliant Standards: IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
