Product Information

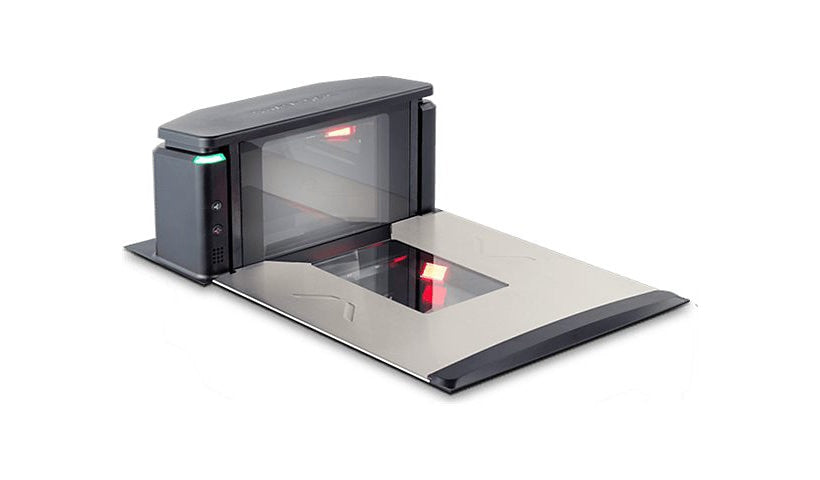

Datalogic's Magellan 9550i is a stationary 2D imaging scanner for checkout counters that reads EAN/JAN, QR, Data Matrix, GS1 DataBar and more, connecting via RS-232.
Key Features:
- Fixed 2D imager; decoded
- RS-232 interface
- EAN/JAN, QR, Data Matrix, GS1 DataBar
Specifications:
- Brand: Datalogic
- Manufacturer Part Number: 957013101-002121
- Interface Required: RS-232
- Barcode Symbology Supported: Aztec code, Data Matrix, EAN/JAN, GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, Micro QR code, MicroPDF417, PDF417, QR code, UPC A Composite, UPC E Composite
- Scan Mode: Fixed projection
- Frequency: 50-60 Hz
- Power Consumption Operational: 2.6 watt
- Power Device Type: Power adapter
- Required Voltage: AC 100-240 volt
- Software Type: Datalogic Aladdin, OPOS/JavaPOS Drivers
- Image Sensor Type: 2D imager
- Interface: RS-232
- Light Source: LED
- Max Operating Temperature: 104 degree Fahrenheit
- Min Operating Temperature: 50 degree Fahrenheit
- Operating Humidity: 5-95% (non-condensing)
- Supported Operating Systems: Linux, Windows
- Barcode Type: Stationary
- Scanner Functionality: Barcode scanner
- Feature Set: 25 kV ESD protection (air discharge), Fixed produce rail, Flange mount, Long platter, Up to 86080 lux light immunity
- OK Notification: Beeper, LED indicator
- TTL Decoding: Decoded
- Cables: 1× RS-232 cable
- Included Accessories: Power supply unit
- Standards & Compliance: China RoHS, ESD, EU RoHS, REACH 2006/1907
- Listed Dimensions: Height 5.1 in, Width 11.5 in, Depth 20 in
