Product Information

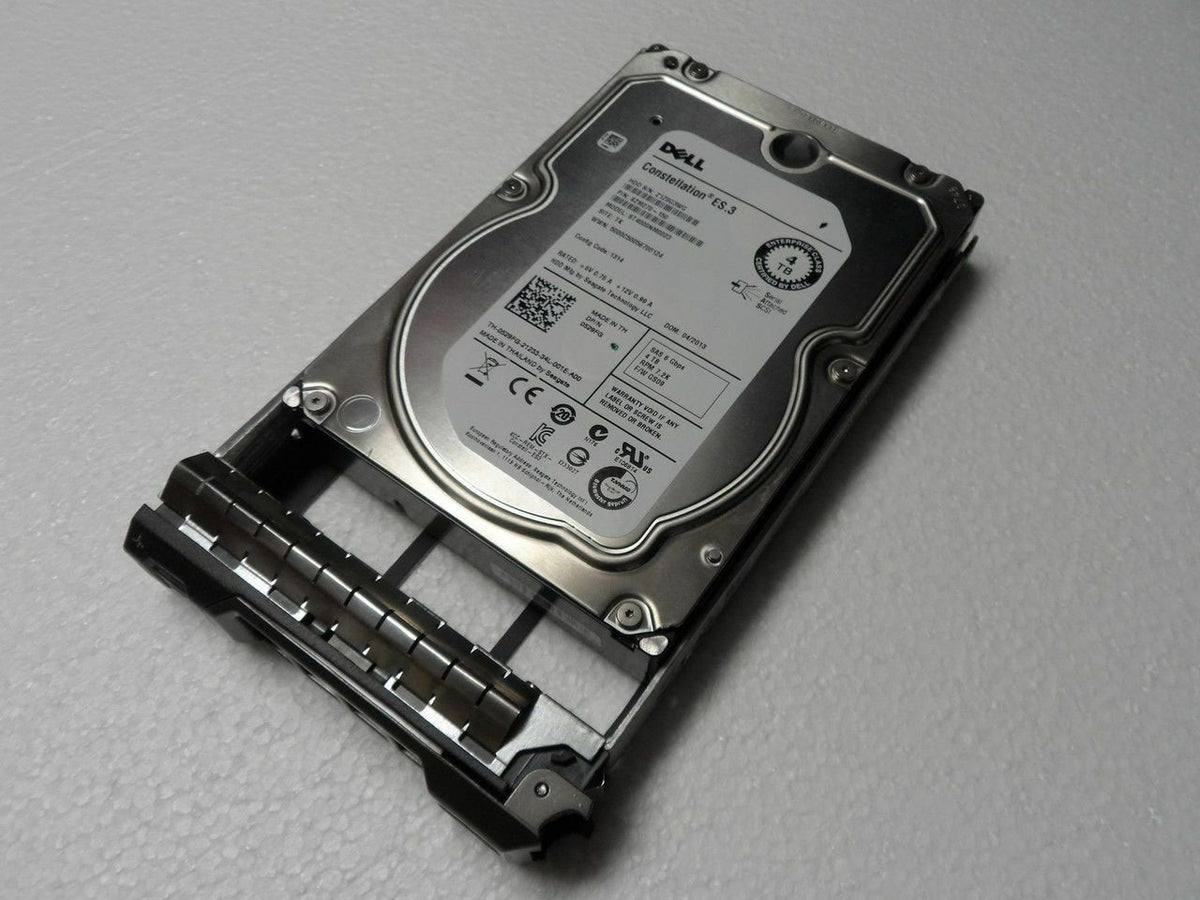

Dell 0529FG 4TB Nearline Hard Drive for PowerEdge and PowerVault Servers. This 3.5 inch Large Form Factor (LFF) drive spins at 7,200 RPM, connects through a SAS 6Gbps interface, has a 128MB buffer and supports hot swap installation.
Condition: New Bulk Pack
Warranty: 90 Days Warranty
A good fit for Dell PowerEdge and PowerVault Servers, this 7,200 RPM SAS drive lets you replace a failed disk or expand capacity while keeping your server running on the drive type it was built around.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
Part Numbers
Brand: Dell
Model: 0529FG
MPN: 0529FG
Drive Details
Device Type: Hard Drive - internal
Capacity: 4 TB
Form Factor: 3.5" x 1/3H
Interface: SAS-6Gbps
Buffer Size: 128 MB
Features: Enhanced Power Condition State Technology
Speed and Throughput
Drive Transfer Rate: 600 MBps (external)
Internal Data Rate: 165 MBps
Seek Time: 8.5 ms (average)
Spindle Speed: 7200 RPM
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 3.5" x 1/3H
Size
Width: 4.00 inch
Depth: 5.80 inch
Height: 1.00 inch
Weight: 25.39 oz
Operating Environment
Min Operating Temperature: 41 °F
Max Operating Temperature: 131 °F
Vibration Tolerance: 0.75 g @ 5-300 Hz (operating)
Sound Emission: 30 dB
Power Usage
Power Consumption: 7 Watt (idle)
Reliability Data
MTBF: 1,200,000 hours
Other
Compatible with Windows 7: "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7.
Compliant Standards: RoHS
Compatible Systems
Dell PowerEdge T-Series: T20 T100 T105 T110 (Gen I,II) T300 T310 T320 T330
Dell PowerEdge T-Series: T410 T420 T430 T605 T610 T620 T630 T710 Servers.
Dell PowerEdge R-Series: R210 (Gen I, II) R220 R230 R300 R310 R320 R330 R410 R415 R420 R430 R510 R520 R530 R530XD
Dell PowerEdge R-Series: R630 R710 R715 R720 R720XD R730XD R730 R900 R905 R920 R930 Servers.
Dell PowerEdge C-Series: C1100 C2100 C6100 C6220 Servers.
Dell PowerEdge M-Series: M420 M510 M520 M610x M630 M710HD M830 M915 Blade Servers.
Dell PowerVault M-Series: M1000e MD1120 MD1200 MD1220 MD3000i MD3060e MD3200 MD3200i Storage Arrays.
Dell PowerVault M-Series: MD3220 MD3220i MD3400 MD3420 MD3460 MD3600f MD3600i MD3620f Storage Arrays.
Dell PowerVault M-Series: MD3660f MD3800f MD3800i MD3820f MD3820i MD3860i Storage Arrays.
Dell PowerVault N-Series: NF600 NX300 NX400 NX3000 NX3100 NX3200 NX3300 Network Attached Storage.
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
