Product Information

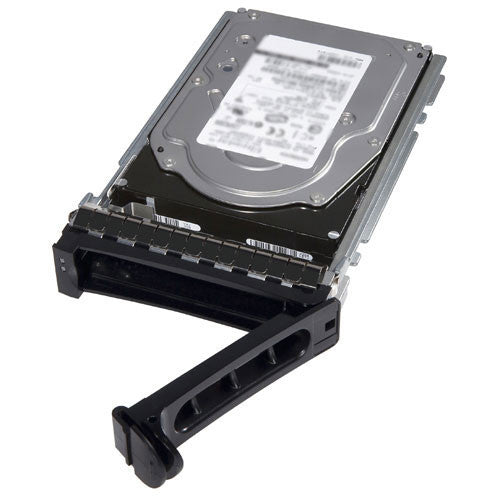

Made for Dell PowerEdge and PowerVault systems, the Dell 07J9RN gives you 4 TB of nearline capacity in a 3.5 inch LFF (large form factor) package. It runs at 7,200 RPM and links to the controller over a SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: Dell
Model: 07J9RN
MPN: 07J9RN
Drive Details
Drive Type: Hard Drive - internal
Storage Capacity: 4 TB
Form Factor: 3.5" x 1/3H
Host Interface: SAS 6Gb/s
Cache Buffer: 64 MB
Features: Enhanced Power Condition State Technology
Windows 7 Compatibility: Carries the Microsoft "Compatible with Windows 7" designation for 32-bit and 64-bit Windows 7
Performance
Drive Transfer Rate: 600 MBps (external)
Internal Data Rate: 165 MBps
Seek Time: 8.5 ms (average)
Rotational Speed: 7200 RPM
Vibration Tolerance: 0.75 g @ 5-300 Hz (operating)
Acoustics: 30 dB
Power Draw: 7 Watt (idle)
MTBF: 1200000 hours
Connections
Ports: 1 x SAS 6Gb/s
Fits Bay: 3.5" x 1/3H
Size and Weight
Width: 4.00 inch
Depth: 5.80 inch
Height: 1.00 inch
Weight: 25.39 oz
Operating Environment
Operating Temp (Min): 41 °F
Operating Temp (Max): 131 °F
Compliance: RoHS
Compatible Systems
- Dell PowerEdge T-Series: T20 T100 T105 T110 (Gen I,II) T300 T310 T320 T330 T410 T420 T430 T605 T610 T620 T630 T710 Servers.
- Dell PowerEdge R-Series: R210 (Gen I, II) R220 R230 R300 R310 R320 R330 R410 R415 R420 R430 R510 R520 R530 R530XD
- Dell PowerEdge R-Series: R630 R710 R715 R720 R720XD R730XD R730 R900 R905 R920 R930
- Dell PowerEdge C-Series: C1100 C2100 C6100 C6220 Servers.
- Dell PowerEdge M-Series: M420 M510 M520 M610x M630 M710HD M830 M915 Blade Servers.
- Dell PowerVault M-Series: M1000e MD1120 MD1200 MD1220 MD3000i MD3060e MD3200 MD3200i MD3220 MD3220i Storage Arrays.
- Dell PowerVault M-Series: MD3400 MD3420 MD3460 MD3600f MD3600i MD3620f MD3800f MD3800i MD3820f Storage Arrays.
- Dell PowerVault M-Series: MD3820i MD3860i Storage Arrays.
- Dell PowerVault N-Series: NF600 NX300 NX400 NX3000 NX3100 NX3200 NX3300 Network Attached Storage.
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
