Product Information

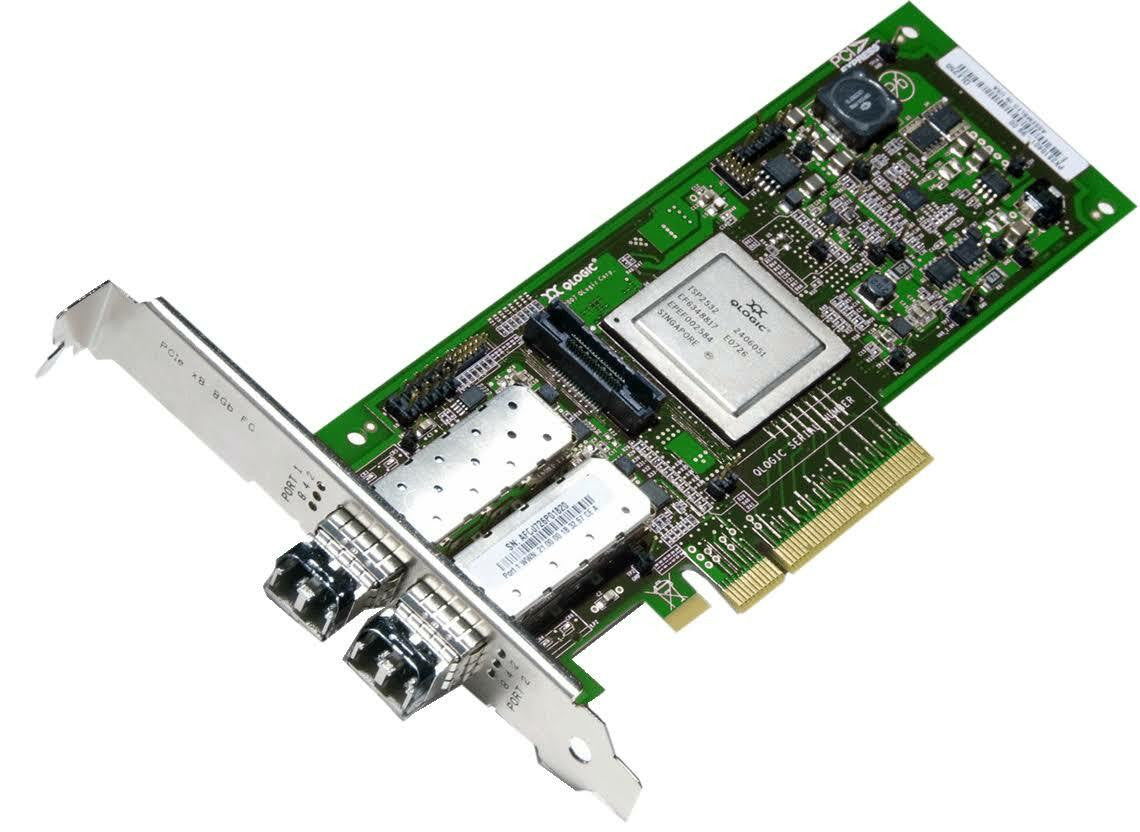

The Dell 0RW9KF is a dual port 8Gb Fibre Channel HBA from QLogic's 8Gb line. It is a wired, low profile PCIe 2.0 x8 plug-in card rated at 8.5Gb/s.
Key Features
- Two LC Fibre Channel ports
- Up to 200,000 IOPS per port
- Optimized for virtualization and RAS, with very low power use
- Overlapping protection domains (OPD)
- Dynamic provisioning, QoS and stronger security
- RoHS compliant
- About 2.5 in high by 6.6 in wide
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
Part Numbers
Manufacturer: Dell
Model: 0RW9KF
MPN: 0RW9KF
General
Product Type: Host Bus Adapter
Form Factor: Plug-In Card
Adapter Details
Bus Type: PCI Express 2.0 x8
Connectivity: Wired
Data Link Protocol: 8Gb Fibre Channel
Fibre Channel Features: FC-AL, FC-AL-2, FCP-2, FCP-3
Features: Full duplex capability, StarPower technology
Connections
Network Ports: 8Gb Fibre Channel x 2
Ports: 2 x 8Gb Fibre Channel
Size and Weight
Depth: 6.6 in
Height: 4.4 in
Power and Environment
Operating Temp (Min): 32 °F
Operating Temp (Max): 131 °F
Operating Humidity: 10 - 90% (non-condensing)
Power Draw (operating): 6.2 Watt
Compliance: ICES-003 Class A, FCC, Laser Class 1, UL 60950-1, RoHS, FCC CFR47 Part 15 B, CSA C22.2 No. 60950-1, EN 6100-3-2, KN22, EN55024:2010, CNS13438:2006, VCCI V-3/2007.04 Class A, EN60950-1:2006 +A11+A1+A12, IEC 60950-1:2005 Second Edition, CISPR 22:2005+A1:2005, EN 55022:2010 Class A, AS/NZS CISPR22:2009+A1:2010, KN24 Class A
Not sure this adapter fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
