Product Information

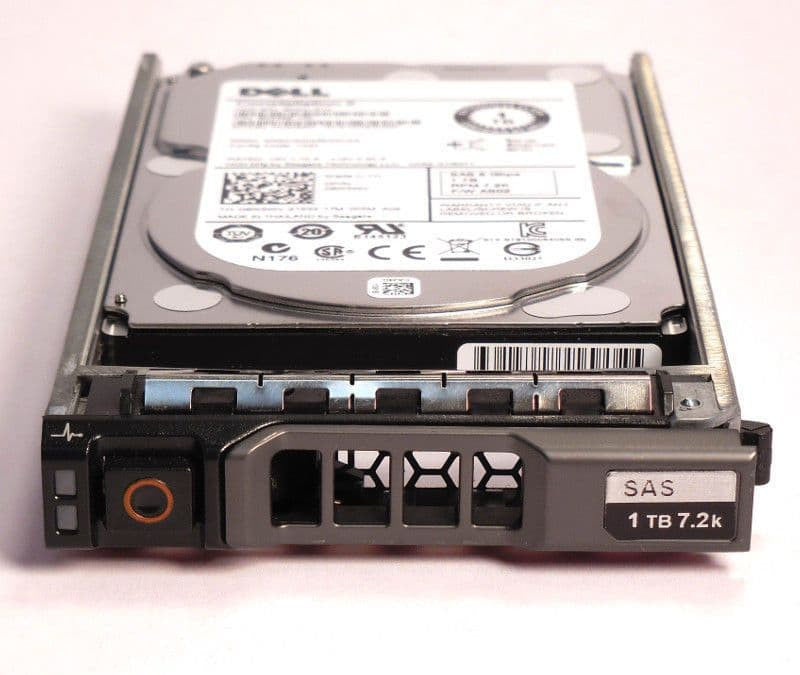

Dell 9W5WV 1TB Nearline Hard Drive for PowerEdge and PowerVault Servers. This 2.5 inch Small Form Factor (SFF) drive spins at 7,200 RPM, connects through a SAS 6Gbps interface, has a 64MB buffer and supports hot swap installation.
Condition: Refurbished (Grade A - Clean)
Warranty: 30 Days Warranty
A good fit for Dell PowerEdge and PowerVault Servers, this 7,200 RPM SAS drive lets you replace a failed disk or expand capacity while keeping your server running on the drive type it was built around.
SAS (Serial Attached SCSI) is the standard interface for server and storage drives. It supports hot swapping and full duplex data transfer, which is why it remains the common choice for systems that need to stay online.
Part Numbers
Brand: Dell
Model: 9W5WV
MPN: 9W5WV
Drive Details
Device Type: Hard Drive - Internal
HDD Capacity: 1 TB
Form Factor: 2.5 inches SFF
Interface: SAS-6Gbps
Buffer: 64 MB
Bytes per Sector: 512
External Data Transfer Rate: 600 MBps
Features: Idle Read After Write (IRAW), Background Media Scan (BMS), Perpendicular Magnetic Recording (PMR), PowerChoice , S.M.A.R.T.
Speed and Throughput
Spindle Speed: 7200 RPM
Drive Transfer Rate: 600MB/S (external)
Seek Time: 8.5 ms (average)
MTBF: 1,400,000 hours
Non-Recoverable Errors: 1 per 10^15
Average Latency: 4.16ms
Connection
Interfaces: 1 x SAS 6Gb/s
Compatible Bay: 2.5" SFF
Size
Height: 0.60 inch
Width: 2.80 inch
Depth: 4.00 inch
Weight: 7.10 oz
Operating Environment
Min Operating Temperature: 41 °F
Max Operating Temperature: 140 °F
Compatible Systems
Dell PowerEdge T-Series: T20 T110 (Gen II) T310 T320 T330 T410 T420 T430 T610 T620 T630 T710 Servers.
Dell PowerEdge R-Series: R210 (Gen I, II) R220 R230 R310 R320 R330 R410 R415 R420 R430 R510 R515 R530XD Servers.
Dell PowerEdge R-Series: R610 R620 R630 R710 R715 R720 R720XD R730 R730XD R805 R810 R815 R820 Servers.
Dell PowerEdge R-Series: R900 R905 R910 R920 R930 Servers.
Dell PowerEdge C-Series: C1100 C2100 C6100 C6220 Servers.
Dell PowerEdge M-Series: M420 M510 M520 M600 M605 M610 M610x M620 M630 M710 M710XD Servers.
Dell PowerEdge M-Series: M805 M820 M830 M905 M910 M915 Servers.
Dell PowerVault M-Series: M1000e MD1120 MD1200 MD1220 MD3200 MD3220 MD3220i Arrays.
Not sure this drive fits your system? Send us your server or storage model and we will confirm compatibility before you order.
