Product Information

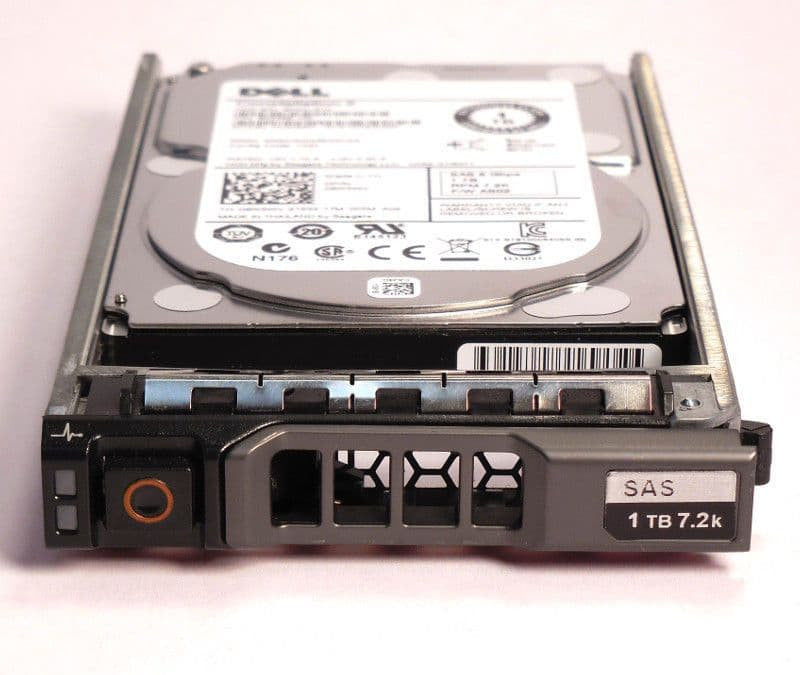

Made for Dell PowerEdge and PowerVault systems, the Dell 9W5WV gives you 1 TB of nearline capacity in a 2.5 inch SFF (small form factor) package. It runs at 7,200 RPM and links to the controller over a SAS 6Gb/s interface. The drive is hot swappable, so it can be installed or replaced while the system keeps running.
SAS is designed for data center duty, where storage has to stay online around the clock and serve many users at once.
Condition: New Bulk Pack
Warranty: 90 Days Warranty
Part Numbers
Manufacturer: Dell
Model: 9W5WV
MPN: 9W5WV
Drive Details
Drive Type: Hard Drive - Internal
Storage Capacity: 1 TB
Form Factor: 2.5 inches SFF
Host Interface: SAS-6Gbps
Cache Buffer: 64 MB
Sector Size (Bytes): 512
Features: Idle Read After Write (IRAW), Background Media Scan (BMS), Perpendicular Magnetic Recording (PMR), PowerChoice , S.M.A.R.T.
Performance
External Transfer Rate: 600 MBps
Rotational Speed: 7200 RPM
Drive Transfer Rate: 600MB/S (external)
Seek Time: 8.5 ms (average)
MTBF: 1,400,000 hours
Non-Recoverable Errors: 1 per 10^15
Average Latency: 4.16ms
Connections
Ports: 1 x SAS 6Gb/s
Fits Bay: 2.5" SFF
Size and Weight
Height: 0.60 inch
Width: 2.80 inch
Depth: 4.00 inch
Weight: 7.10 oz
Operating Environment
Operating Temp (Min): 41 °F
Operating Temp (Max): 140 °F
Compatible Systems
- Dell PowerEdge T-Series: T20 T110 (Gen II) T310 T320 T330 T410 T420 T430 T610 T620 T630 T710 Servers.
- Dell PowerEdge R-Series: R210 (Gen I, II) R220 R230 R310 R320 R330 R410 R415 R420 R430 R510 R515 R530XD Servers.
- Dell PowerEdge R-Series: R610 R620 R630 R710 R715 R720 R720XD R730 R730XD R805 R810 R815 R820 Servers.
- Dell PowerEdge R-Series: R900 R905 R910 R920 R930 Servers.
- Dell PowerEdge C-Series: C1100 C2100 C6100 C6220 Servers.
- Dell PowerEdge M-Series: M420 M510 M520 M600 M605 M610 M610x M620 M630 M710 M710XD Servers.
- Dell PowerEdge M-Series: M805 M820 M830 M905 M910 M915 Servers.
- Dell PowerVault M-Series: M1000e MD1120 MD1200 MD1220 MD3200 MD3220 MD3220i Arrays.
Not sure this drive fits your system? Send us your server or storage model and the DatorPro team will confirm compatibility before you order.
