Product Information

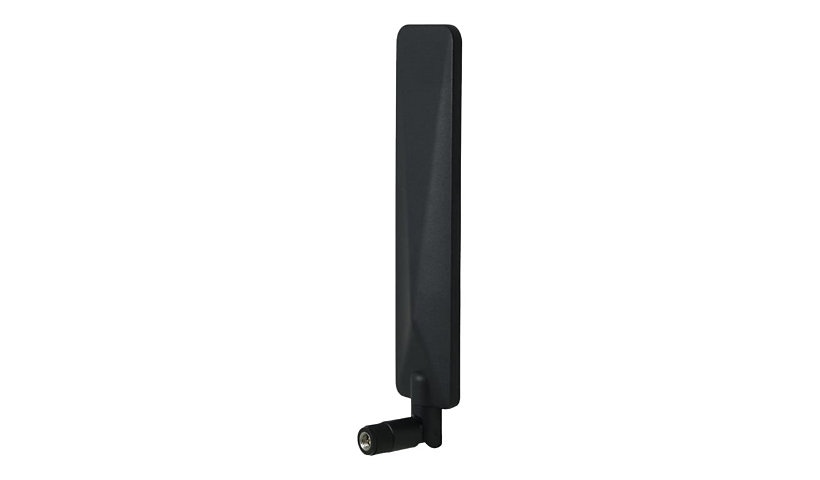

The Digi 76000926 is a 3 dBi cellular antenna for 3G, 4G and LTE devices, covering 699 to 960 MHz and 1710 to 2690 MHz. It has a 50 ohm SMA male connector and an ABS plastic body about 7.7 in long.
Key Features
- 3G / 4G / LTE cellular
- 699 to 960, 1710 to 2690 MHz
- 3 dBi gain
- SMA male, 50 ohm
- About 7.7 in tall
- Black ABS body
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Packaged Quantity: 1
Color Category: Black
Network and Communication
Antenna Gain: 3 dBi
Antenna Compatibility: 3G, 4G, LTE
Frequency Range: 1710 - 2690 MHz, 699 - 960 MHz
Signaling Type: Cellular
Antenna Type: Antenna
Connectivity
Connectors: 1 x antenna - SMA (male)
Technical Information
Impedance: 50 ohm
Antenna Features: Linear polarization, VSWR < 3:1, VSWR < 5:1
Physical Characteristics
Materials: ABS plastic
Dimensions and Weight
Height: 7.7 inch
Width: 1.5 inch
Depth: 0.5 inch
Weight: 1.41 ounce
Warranty
Service Activation: No
