Product Information

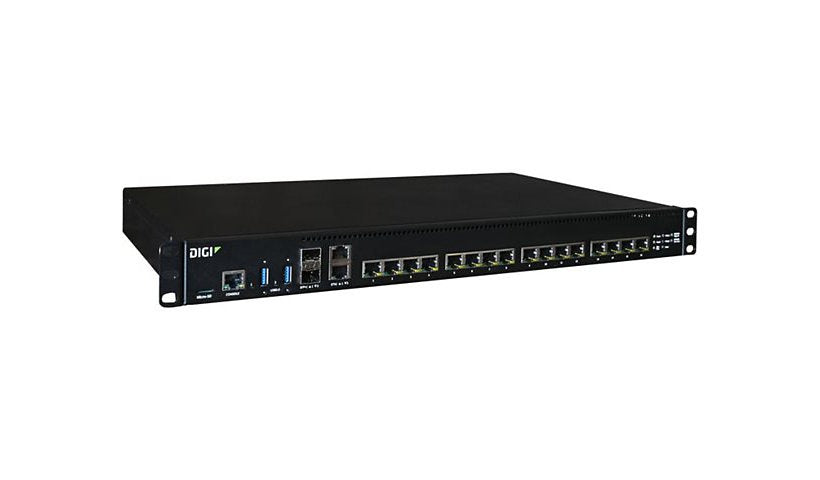

The Digi Connect EZ 16 MEI Cellular (EZ16-C2G4-US) is a 16 port serial server with a plug-in LTE Cat 4 modem (UMTS and EDGE fallback) for industrial sites. It has sixteen RS-232 RJ-45 ports (RS-422/485 also listed), two 10/100/1000 RJ-45, two 10G SFP+, two USB 3.1 Gen 1, an RJ-45 console, two SMA antenna ports and two mini SIM slots. It has 4 GB flash, 256 MB RAM, microSD support, Digi TrustFence, Secure Boot, Digi Navigator and Remote Manager Premier, and LDAP, RADIUS and TACACS+. Two fans cool it. A US C13 power cable, rack ears and 1 year of Digi LifeCycle Assurance are included.
Key Features
- 16 serial ports, MEI
- Plug-in LTE Cat 4 modem
- 2 x 10G SFP+, 2 x GbE
- TrustFence, Secure Boot
- Remote Manager Premier
- 1 year LifeCycle Assurance
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 16 MEI Cellular
Product Type: Device server
Packaged Quantity: 1
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, LTE, RS-232, RS-422, RS-485
Network Standard: DDNS, DHCP
Remote Management: HTTP, HTTPS, NTP, SMTP, SNMP 3, SSH, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Wireless LAN: LTE
Cellular Data Connectivity Technology: EDGE, LTE Cat4, UMTS
Mobile Broadband Access: Yes
Cellular Band: EDGE/GPRS 850/900/1800/1900 / UMTS B1/B2/B4/B5/B6/B8/B19 / LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B38/B40/B41
Features: 2 fans, Command-line interface (CLI) management, Digi TrustFence, Secure Boot, SMTP support, Syslog support
Software Type: Digi Navigator, Digi Remote Manager Premier
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 16 x RS-232 - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 10/100/1000Base-T - RJ-45, 2 x antenna - SMA, 2 x USB 3.1 Gen 1 - Type A
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card
Power
Device Type: Internal power supply
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: microSD, microSDHC, microSDXC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Console, Fan, LAN, Port status, Power, Serial, USB, User, WWAN
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 10 inch
Included Items
Included Accessories: LTE modem (plug-in), Rack Ears
Cables: 1 x power cable (C13)
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
