Product Information

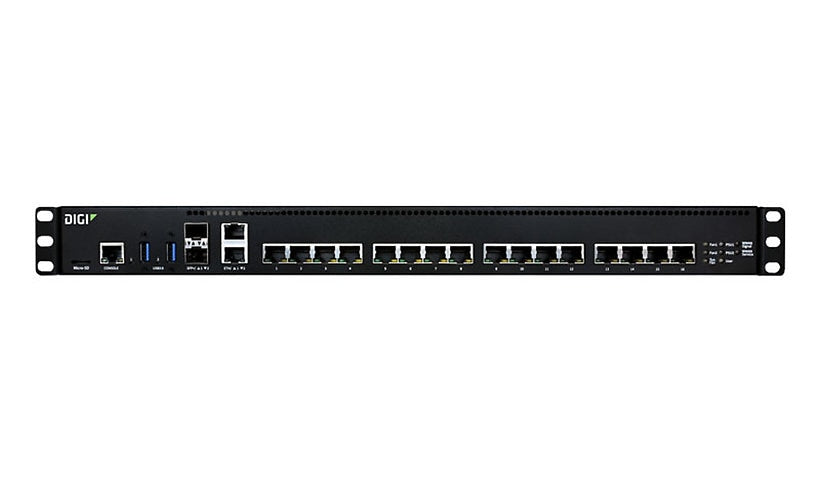

The Digi Connect EZ 16 MEI (EZ16-C100-US) is a 16 port serial server with two 10G capable SFP+ sockets, two gigabit RJ-45, two USB 3.1 Gen 1, an RJ-45 console and a status LED. It has 4 GB flash, 256 MB RAM and microSD support, with Digi TrustFence security, LDAP, RADIUS and TACACS+, and web, SSH, SNMP v3 and Telnet management. One power supply is installed with a second optional, and it holds UL and IEC safety approvals (IEC 62368-1 and 60950-1). Rack ears, a US cord and 1 year of Digi LifeCycle Assurance are included.
Key Features
- 16 serial ports, MEI
- 2 x 10G SFP+, 2 x GbE
- Digi TrustFence
- 1 PSU, second optional
- Rack ears included
- 1 year LifeCycle Assurance
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 16 MEI
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Network Standard: DDNS
Remote Management: HTTP, HTTPS, NTP, SMTP, SNMP 3, SSH, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Features: Command-line interface (CLI) management, Digi TrustFence, FTP client, Syslog support
Bundled Services: 1-year Digi LifeCycle Assurance
Connectivity
Ports: 16
Interface Provided: 1 x console - RJ-45, 16 x serial - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45, 2 x USB 3.1 Gen 1 - Type A
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: microSD, microSDHC, microSDXC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Fan, Port status, Power, User, WWAN
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 10 inch
Included Items
Included Accessories: Rack Ears
