Product Information

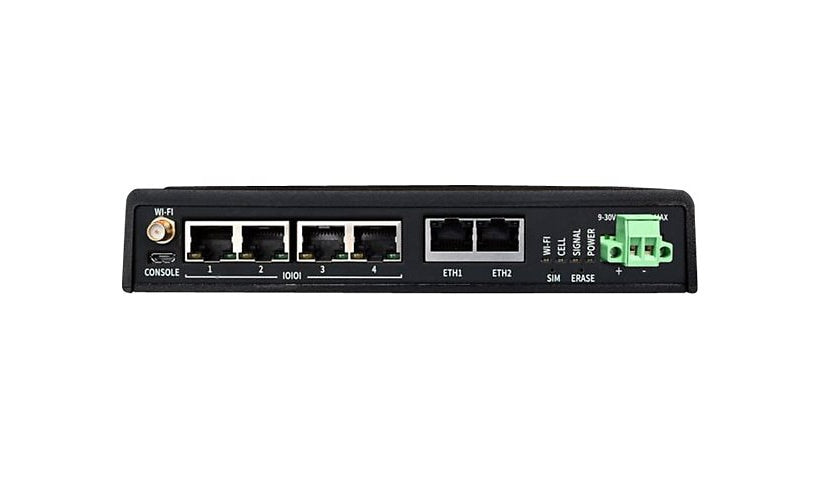

The Digi Connect EZ 4i (EZ04-IA00-EXT) is a 4 port serial device server with Wi-Fi 5 for automation, robotics, data acquisition and POS equipment. It has four RS-232/422/485 RJ-45 ports with auto sensing, two gigabit RJ-45 ports and dual band 802.11ac (as client or AP for up to 10 clients) with a 5 dBi SMA antenna. It adds Digi TrustFence, SPI firewall, IPsec and OpenVPN, VLAN, Modbus and routing with BGP, OSPF, RIP and VRRP, with 4 GB flash and 256 MB RAM. It draws about 4.5 W from an external adapter and comes with a DIN rail clip and the antenna.
Key Features
- 4 RS-232/422/485 RJ-45
- Wi-Fi 5 dual band
- 2 x gigabit Ethernet
- TrustFence, IPsec, OpenVPN
- Modbus, BGP, OSPF
- DIN rail clip included
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 4i
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, RS-232, RS-422, RS-485
Network Standard: DHCP, FTP, HTTP, HTTPs, IPSec, NTP, SMTP, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, HTTPS, NTP, SCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol: BGP, OSPF, RIP-1, RIP-2, VRRP
Authentication Method: LDAP, RADIUS, TACACS+
Encryption: 256-bit AES, 256-bit AES-CBC, DH, IKEv1, IKEv2, MDS, RSA, SHA-1, SHA-256, SHA-384, SHA-512, TLS 1.2, Triple DES, WPA-Enterprise, WPA2-Enterprise, WPA2-Personal, WPA3-Personal
Capacity: Wireless clients: 10
Wireless LAN: 802.11a/b/g/n/ac
Network Band: 2.4 GHz, 5 GHz
Antennas: 1
Antenna Form Factor: External detachable
Antenna Gain Level: 5 DBi
Features: Access Point operational mode, Auto-sensing per device, Digi TrustFence, DNS server, DynDNS, FTP client, GRE tunneling, IP address filtering, IPSec NAT-Traversal (NAT-T), MAC address filtering, Modbus compatible, NAT support, NTP server, OpenVPN client, OpenVPN server, Port forwarding, SISO technology, SNTP support, Stateful Packet Inspection Firewall (SPIF), Syslog support, VLAN support, VPN support, Wireless Client Mode
Connectivity
Ports: 4
Interface Provided: 1 x antenna - SMA, 2 x 1000Base-T - RJ-45, 4 x RS-232/422/485 - RJ-45
Power
Device Type: External power adapter
Power Consumption Operational: 4.5 watt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: LAN, Power, Serial, Signal, Wi-Fi
Dimensions and Weight
Height: 1.4 inch
Width: 7.6 inch
Depth: 5.3 inch
Included Items
Included Accessories: DIN-rail clip, Wi-Fi antenna
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 32, CB, EN 62311, FCC Part 15 B, FIPS 197, ICES-003, IEC 62368-1, RED, RoHS 3, UL Class 1 Division 2
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: AS/NZS CISPR 32, CB, EN 62311, FCC Part 15 B, FIPS 197, ICES-003, IEC 62368-1, RED, RoHS 3, UL Class 1 Division 2
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
