Product Information

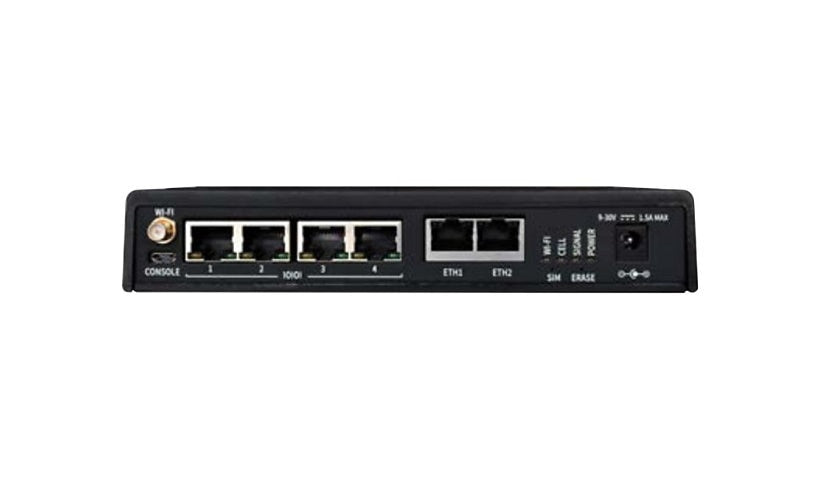

The Digi Connect EZ 4i (EZ04-IAG4-EXT) is an industrial rated 4 port serial server with LTE for automation, robotics, data acquisition and POS equipment. It has four RS-232/422/485 RJ-45 ports, two gigabit RJ-45 and two mini SIM slots, with 4 GB flash and 256 MB RAM. It supports Digi TrustFence, Digi Remote Manager, WPA2 and WPA3, and LDAP, RADIUS and TACACS+, and runs on 9 to 30 V DC at about 5 W.
Key Features
- 4 RS-232/422/485 ports
- Built-in LTE, 2 SIM slots
- 2 x gigabit Ethernet
- Digi TrustFence
- Industrial rated
- 9 to 30 V DC, 5 W
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 4i
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, LTE, RS-232, RS-422, RS-485
Network Standard: ICMP/IP, TCP/IP, UDP/IP
Remote Management: SNMP 3
Authentication Method: LDAP, RADIUS, TACACS+
Encryption: WPA2-Enterprise, WPA2-Personal, WPA3
Wireless LAN: LTE
Features: Digi TrustFence
Software Type: Digi Remote Manager
Connectivity
Ports: 4
Interface Provided: 2 x 1000Base-T - RJ-45, 4 x RS-232/422/485 - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card
Power
Required Voltage: DC 9 - 30 volt
Power Consumption Operational: 5 watt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: LAN, LTE, Power, Serial, Signal, Wi-Fi
Dimensions and Weight
Height: 1.4 inch
Width: 5.3 inch
Depth: 7.6 inch
