Product Information

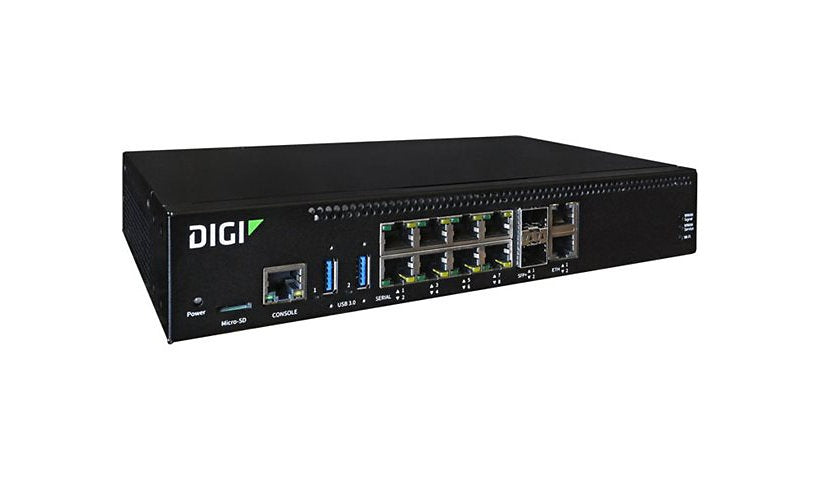

The Digi Connect EZ 8 MEI (EZ08-C1G4-ACS) is an 8 port rack mount serial server with a plug-in LTE modem for cellular backup. It has eight RS-232/422/485 RJ-45 ports with auto sensing, two gigabit RJ-45, two 10G SFP+, two USB 3.1 Gen 1, an RJ-45 console, two SMA antenna ports and two mini SIM slots. It includes Digi Navigator and Digi Remote Manager Premier software and supports LDAP, RADIUS and TACACS+ with web, SSH, SNMP v3 and syslog management. Antennas, a power cable, rack ears and 1 year of Digi LifeCycle Assurance are included.
Key Features
- 8 RS-232/422/485 ports
- Plug-in LTE modem
- 2 x 10G SFP+, 2 x GbE
- Remote Manager Premier
- Antennas and rack ears
- 1 year LifeCycle Assurance
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 8 MEI
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Remote Management: HTTP, HTTPS, NTP, SCP, SMTP, SNMP 3, SSH, Syslog, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Cellular Data Connectivity Technology: LTE
Cellular Band: GSM 850/900/1800/1900 / UMTS B1/B19/B2/B4/B5/B6/B8 / LTE B1/B12/B13/B18/B19/B2/B20/B25/B26/B3/B38/B4/B40/B41/B5/B7/B8
Features: Auto-sensing per device
Software Type: Digi Navigator, Digi Remote Manager Premier
Connectivity
Ports: 8
Interface Provided: 1 x console - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45, 2 x antenna - SMA, 2 x USB 3.1 Gen 1 - Type A, 8 x RS-232/422/485 - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Mini SIM card
Power
Device Type: External power adapter
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: microSD, microSDHC, microSDXC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Status Indicators: Console, Ethernet link/activity, Power, Serial, USB, Wi-Fi, WWAN
Dimensions and Weight
Height: 1.7 inch
Width: 10.2 inch
Depth: 6.3 inch
Included Items
Included Accessories: Antennas, LTE modem (plug-in), Power cable, Rack Ears
