Product Information

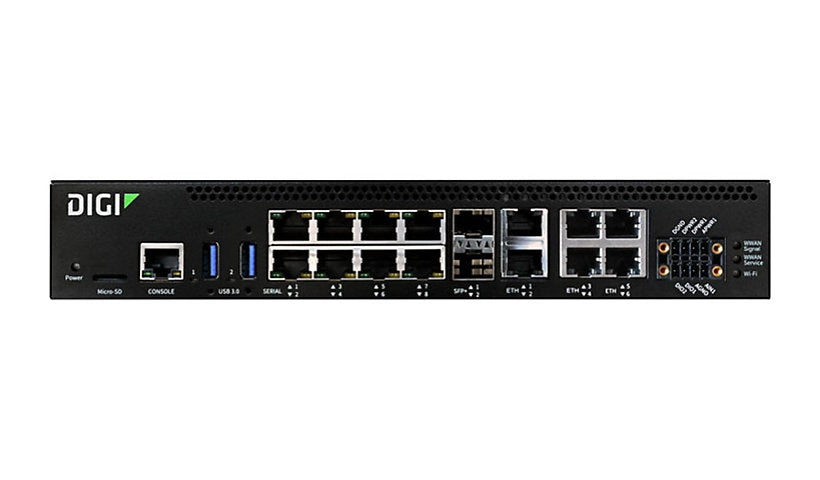

Digi's Connect EZ 8 I/O SW (EZ08-E100-US) is a rack mount device server with eight RS-232 ports, a built in six port Gigabit Ethernet switch and two 10G SFP+ ports. It adds digital and analog I/O terminals and includes a 1-year Digi LifeCycle Assurance. This is a serial server with a built-in switch.
Key Features
- 8 x RS-232 serial ports (RJ-45)
- 6 x Gigabit RJ-45 switch ports
- 2 x 10G SFP+ ports
- Digital and analog I/O terminals
- 1-year Digi LifeCycle Assurance
- US power cable and rack ears
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 8 I/O SW
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management: HTTP, HTTPS, NTP, SCP, SMTP, SNMP 3, SSH, Syslog, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Features: Auto-sensing per device
Bundled Services: 1-year Digi LifeCycle Assurance
Connectivity
Ports: 8
Interface Provided: 1 x analog input - terminal block, 1 x console - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x digital input/output - terminal block, 2 x USB 3.1 Gen 1 - Type A, 6 x 1000Base-T - RJ-45, 8 x RS-232 - RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: microSD, microSDHC, microSDXC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Status Indicators: Console, Ethernet link/activity, Power, Serial, USB, Wi-Fi, WWAN
Built-in Devices: 6-port switch
Dimensions and Weight
Height: 1.7 inch
Width: 10.2 inch
Depth: 6.3 inch
Included Items
Included Accessories: Power cable (US), Rack Ears
