Product Information

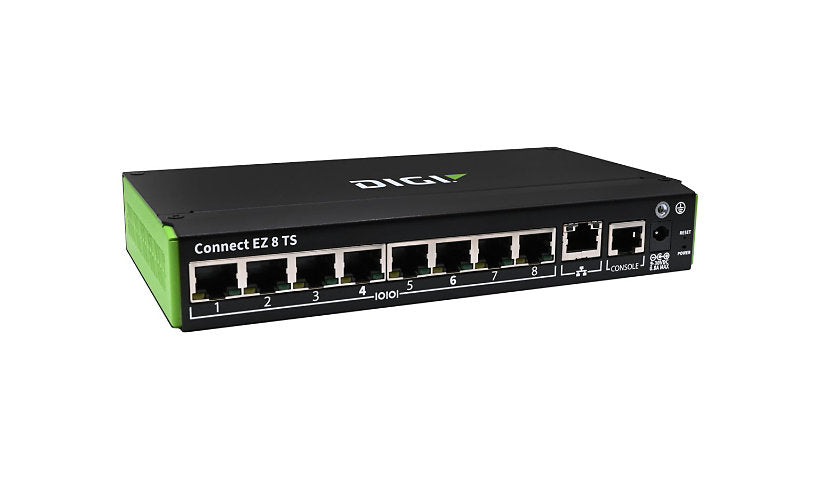

Digi's Connect EZ 8 TS (EZ08-TS00-GLB) networks eight serial devices, with each RJ-45 port software selectable for RS-232, RS-422 or RS-485. It has one Gigabit Ethernet port, a console port and a 1-year Digi LifeCycle Assurance. The spec sheet lists the power adapter as not included. This is a serial server, not a switch.
Key Features
- 8 x RS-232/422/485 ports (RJ-45)
- Software selectable serial mode
- 1 x Gigabit Ethernet RJ-45
- Digi Remote Manager and Navigator
- 1-year Digi LifeCycle Assurance
- Power adapter not included (per spec)
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 8 TS
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485
Remote Management: HTTP, HTTPS, NTP, SCP, SMTP, SNMP 3, SSH, Syslog, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Software Type: Digi Navigator, Digi Remote Manager
Bundled Services: 1-year Digi LifeCycle Assurance
Connectivity
Ports: 8
Interface Provided: 1 x console - RJ-45, 1 x Ethernet 1000 - RJ-45, 8 x RS-232/422/485 - RJ-45
Power
Device Type: External power adapter (not included)
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Console, Ethernet link/activity, Power, Serial
Dimensions and Weight
Height: 1.3 inch
Width: 4.2 inch
Depth: 7.7 inch
Weight: 3.26 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32, CB, EN 55032, EN 55035, FCC Part 15 Subpart B, ICES-003, IEC 62368-1, UL 62368-1
