Product Information

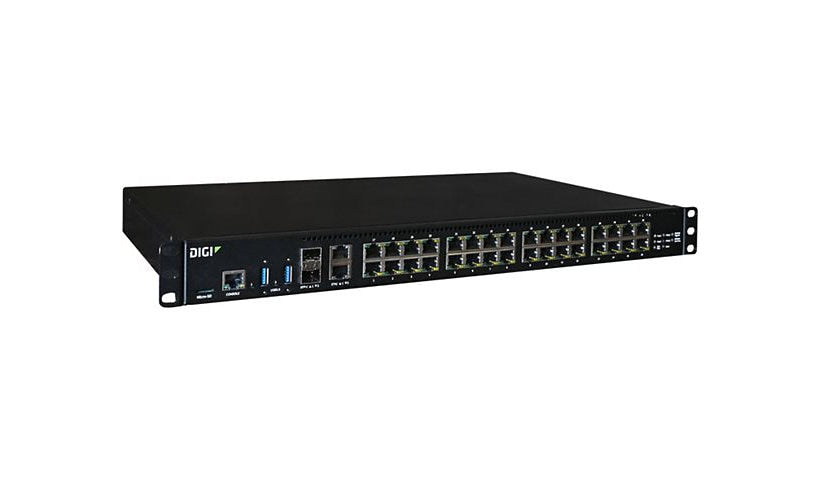

The Digi Connect EZ32-A100-US connects 32 RS-232 serial devices to your network through two 10G SFP+ ports and two Gigabit RJ-45 ports. It ships with one power supply (redundant optional) and a 1-year Digi LifeCycle Assurance. This is a serial server, not a switch.
Key Features
- 32 x RS-232 serial ports (RJ-45)
- 2 x 10G SFP+, 2 x Gigabit RJ-45
- 2 x USB 3.1 Gen 1 Type A
- 1 power supply, redundant optional
- 1-year Digi LifeCycle Assurance
- Rack ears included
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect EZ
Model: 32
Product Type: Device server
Packaged Quantity: 1
Color Category: Black
Country: United States
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DDNS
Remote Management: HTTP, HTTPS, NTP, SMTP, SNMP 3, SSH, Telnet
Authentication Method: LDAP, RADIUS, TACACS+
Features: Command-line interface (CLI) management, Digi TrustFence, FTP client, Syslog support
Bundled Services: 1-year Digi LifeCycle Assurance
Connectivity
Ports: 32
Interface Provided: 1 x console - RJ-45, 2 x 10 Gigabit Ethernet - SFP+, 2 x 1000Base-T - RJ-45, 2 x USB 3.1 Gen 1 - Type A, 32 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 1
Power Supplies Supported: 2
Redundant Power Supply: Optional
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 4 GB
Flash Memory Cards Supported: microSD, microSDHC, microSDXC
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Status Indicators: Fan, Port status, Power, User, WWAN
Dimensions and Weight
Height: 1.7 inch
Width: 17.5 inch
Depth: 10 inch
Included Items
Included Accessories: Rack Ears
