Product Information

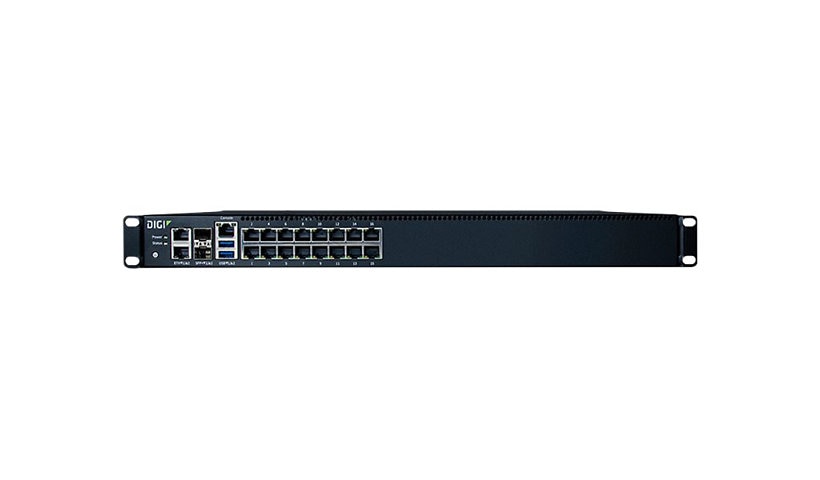

The Digi Connect IT 16 (IT16-1002) is a 16 port console server built for redundancy, with dual Ethernet, dual SFP+ and field replaceable dual power, managed through Digi Remote Manager. It has sixteen RS-232 RJ-45 ports plus an RJ-45 console, two gigabit RJ-45, two 10G SFP+ and two USB 3.1 Gen 1, with 2 GB RAM, 8 GB flash and SD card support. It supports IPsec VPN, SPI firewall, NAT, RSTP and routing with BGP, OSPF, IS-IS, RIP and VRRP, with RADIUS, TACACS+ and X.509. It draws about 30.5 W. The spec lists the internal power supply as not installed and redundant power as optional, so please confirm the power configuration.
Key Features
- 16 RS-232 RJ-45 ports
- 2 x 10G SFP+, 2 x GbE
- Digi Remote Manager
- IPsec, BGP, OSPF
- Field replaceable power
- Confirm PSU included
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect
Model: IT 16
Product Type: Console server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: DHCP, FTP, IPSec, NTP, PPPoE, SFTP
Remote Management: CLI, HTTP, HTTPS, SNMP 3, SSH
Routing Protocol: BGP, GRE, IS-IS, OSPF, RIP-1, RIP-2, VRRP
Authentication Method: RADIUS, TACACS+, X.509 certificates
Encryption: 256-bit AES-CBC, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, DES, IKE, IKEv2, MD5, RSA, SHA-1, Triple DES
Features: IP address filtering, MAC address filtering, NAPT support, NAT support, Rapid Spanning Tree Protocol (RSTP) support, Stateful Packet Inspection (SPI), VPN support
Connectivity
Ports: 16
Interface Provided: 1 x RS-232 - RJ-45, 16 x RS-232 - RJ-45, 2 x 1000Base-T - RJ-45, 2 x 10GBase-X - SFP+, 2 x USB 3.1 Gen 1 - Type A
Power
Device Type: Internal power supply (not installed)
Frequency: 50/60 hertz
Power Consumption Operational: 30.5 watt
Redundant Power Supply: Optional
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Flash Memory Cards Supported: SD Memory Card, SDHC Memory Card, SDXC Memory Card
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 122 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: Rack-mountable
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 17.3 inch
Width: 17.5 inch
Depth: 11.8 inch
Weight: 11.24 lbs
Certifications and Listing
Compliant Standards: AS/NZS CISPR 22, CSA 22.2 No. 60950, EN 55032, EN 60950, EN 62368, EN55024, FCC Part 15 A, IC, UL 60950
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
