Product Information

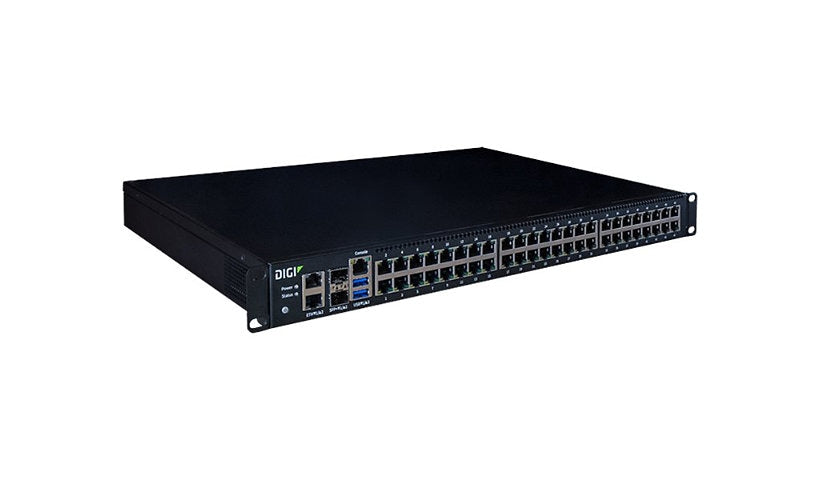

The Digi Connect IT 48 (IT48-1002) is a 48 port remote access console server built for redundancy, with dual Ethernet, dual SFP+ and field replaceable dual power, managed through Digi Remote Manager. It has forty-eight RS-232 RJ-45 ports, two gigabit RJ-45, two 10G SFP+, two USB 3.1 Gen 1 and an RJ-45 console, with 2 GB RAM, 8 GB flash and an SD slot. It supports IPsec and IP filtering, and CLI, web, SSH and SNMP management. Dual redundant supplies draw about 39 W in 1U, with a 6.6 ft network cable and serial adapter included.
Key Features
- 48 RS-232 RJ-45 ports
- 2 x 10G SFP+, 2 x GbE
- Dual redundant PSU
- Digi Remote Manager
- IPsec, SSH, SNMP
- 1U rack mount
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi Connect
Model: IT 48
Product Type: Remote access server
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: 10 Gigabit Ethernet (optical), Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Network Standard: IPSec, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, HTTPS, SCP, SNMP, SSH
Features: IP address filtering, SD card slot
Software Type: Digi Remote Manager
Connectivity
Interface Provided: 1 x console - RJ-45, 2 x 1000Base-T - RJ-45, 2 x 10Gb Ethernet - SFP+, 2 x USB 3.1 Gen 1, 48 x RS-232 - RJ-45
Power
Device Type: Internal power supply
Power Consumption Operational: 39 watt
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply: Yes
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Physical Characteristics
Form Factor: Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Power, Status
Dimensions and Weight
Height: 1.7 inch
Width: 11.8 inch
Depth: 17.5 inch
Weight: 11.64 lbs
Included Items
Cables: 1 x network cable - 6.6 ft, Serial adapter
Certifications and Listing
Compliant Standards: CSA 22.2 No. 60950, EN 60950, EN55024, FCC Part 15 A, UL 60950
