Product Information

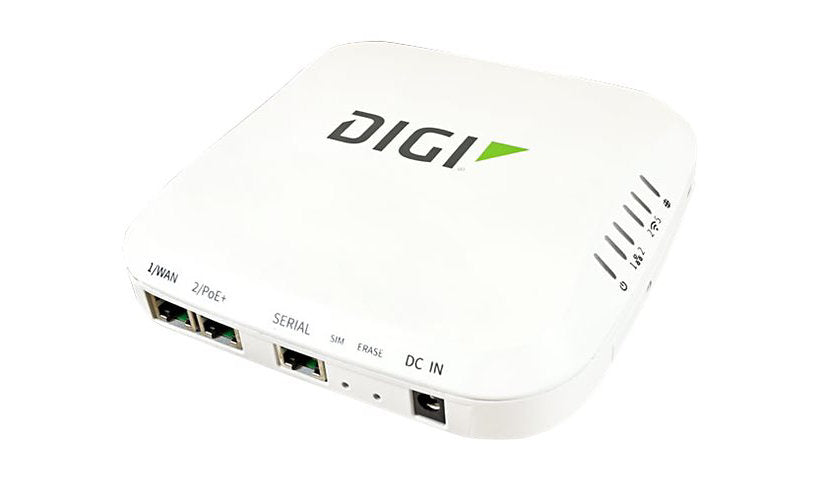

Digi's EX50 packs 5G cellular, Wi-Fi and routing into one box for enterprise sites, branches and managed home offices, usable as a primary or backup link. It offers 5G NR and LTE Advanced Pro, Wi-Fi 6, 2.5GbE and Gigabit ports with PoE+, up to 2 Gbps throughput and 500 Mbps IPsec VPN, managed through Digi Remote Manager.
Key Features
- 5G NR and LTE Advanced Pro, 2 x Mini SIM
- Wi-Fi 6 dual band
- 2.5GbE and GbE ports, PoE+
- 2 Gbps throughput, 500 Mbps IPsec, 10 tunnels
- ARM A53 1.8 GHz, Digi Accelerated Linux
- Digi Remote Manager, SD-WAN, mounting kit included
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Model: EX50
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: 2.5 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Remote Management: CLI, HTTPS, SSH
Bridge & Router: Throughput: 2 Gbps, VPN throughput (IPSec): 500 Mbps
Encryption: WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, WPA3-Personal
Modem Transmission Data Rate: 1 GBps
Capacity: Typical client count: 50, VPN tunnels: 10
Wireless LAN: 802.11a/b/g/n/ac/ax
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G NR, LTE Advanced Pro
Antenna Form Factor: External detachable and internal
Operating System Edition: Digi Accelerated Linux Operating System
Key Features: VPN support
Features: 2T2R MIMO technology, Access Point operational mode, Auto-sensing per device, Cisco straight pinout, Manageable, PoE+, SD-WAN support, Wireless Client Mode
Software Type: Digi Remote Manager
Connectivity
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: ARM
Processor Number: A53
Processors Installed: 1
Clock Speed: 1.8 GHZ
RAM Installed: 512 megabyte
Flash Memory Installed: 512 megabyte
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Mounting Kit: Included
Status Indicators: Cellular mode, LAN, Online, Power, SIM1, SIM2, WAN, Wi-Fi
Dimensions and Weight
Height: 1.4 inch
Width: 6.2 inch
Depth: 6.2 inch
Weight: 21.16 ounce
Included Items
Cables: 1 x network cable, 1 x serial cable
Certifications and Listing
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Warranty
Service Activation: No
