Product Information

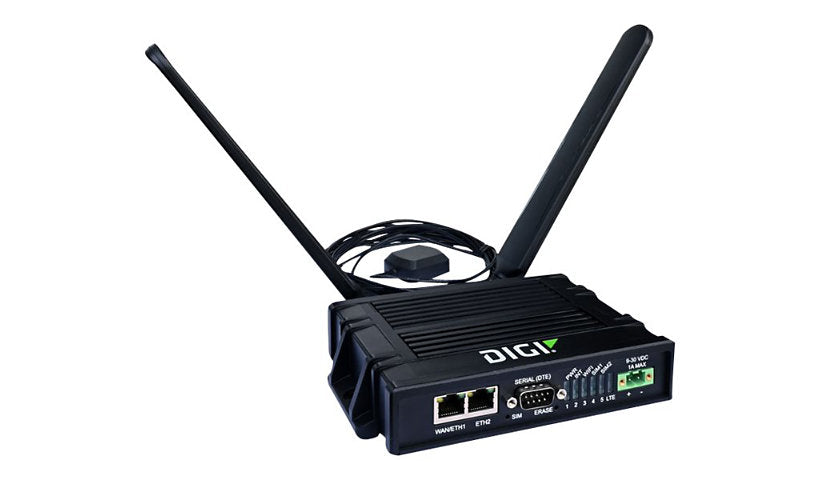

Digi's IX20 cellular router covers basic to industrial routing for industrial infrastructure, digital signage, retail kiosks and service terminals, managed with Digi Remote Manager. This model has a 10/100 WAN/LAN port, a 10/100 LAN port, RS-232, dual Mini SIM slots and GNSS, draws 2.5 W and runs on 9 to 30 V DC. The title lists 3G; no other cellular detail is given.
Key Features
- Cellular per title (3G), 2 x Mini SIM
- 1 x 10/100 WAN/LAN, 1 x 10/100 LAN
- RS-232 DB-9, GNSS
- BGP, OSPF, VRRP, IPsec, OpenVPN
- Digi Remote Manager
- 9 to 30 V DC, 2.5 W
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Model: IX20
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, RS-232
Network Standard: DDNS, DHCP, NTP, SFTP, SMTP
Remote Management: CLI, HTTP, HTTPS, SCP, SNMP 2, SNMP 3, SSH, Telnet
Routing Protocol: BGP, OSPF, RIP-1, RIP-2, VRRP
Authentication Method: RADIUS, Secure Shell (SSH), TACACS+
Encryption: 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, DH, FIPS 197, IKEv1, IKEv2, MD5, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.2, Triple DES
Features: Automated failover, Captive Portal, DNS server, Dynamic DNS client, DynDNS, Event log, Firewall protection, Flow control, FTP client, GRE VPN tunnels, IP address filtering, IP forwarding support, IPSec NAT-Traversal (NAT-T), MAC address filtering, mDNS, Multicast routing, NAPT support, NAT support, NTP server, OpenVPN client, OpenVPN server, Quality of Service (QoS), SISO technology, SMTP e-mail client, SNTP support, Syslog support, VLAN support
Connectivity
Interface Provided: Antenna: 2 x SMA, LAN: 1 x 10Base-T/100Base-TX - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
Power
Required Voltage: DC 9 - 30 volt
Power Consumption Operational: 2.5 watt
Memory and Processor
RAM Installed: 256 megabyte
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Internet, LTE, Power, Signal strength, SIM1, SIM2
Built-in Devices: GNSS receiver, GPS
Dimensions and Weight
Height: 1.4 inch
Width: 6.4 inch
Depth: 4.2 inch
Weight: 22.93 ounce
Certifications and Listing
Compliant Standards: AS/NZS CISPR 32, CB, EN 62311, FCC Part 15 B, ICES-003, IEC 62368-1, RED, RoHS 3
Warranty
Service Activation: No
