Product Information

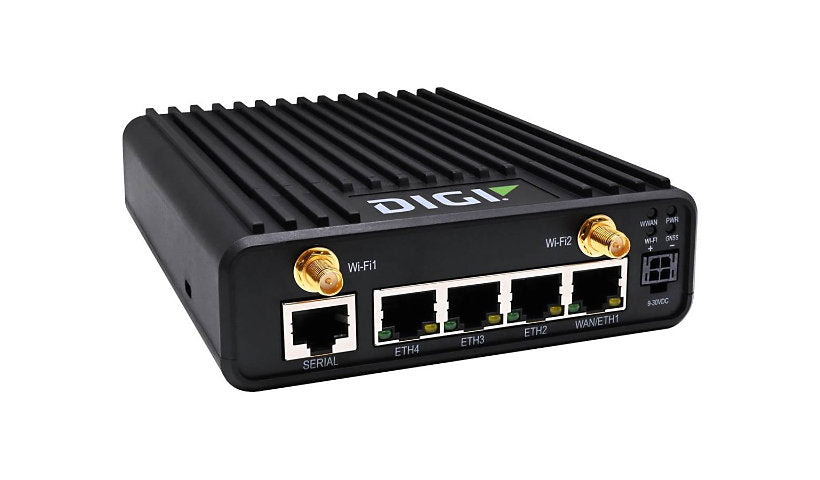

The Digi IX25 (IX25-5A-1G) is a 5G industrial cellular router, not a network adapter. It has a 1.2 GHz quad core processor, 1 GB of RAM, 8 GB of flash, a four port Gigabit RJ-45 switch, Wi-Fi 6, dual nano-SIM slots with eSIM, RS-232 serial, two digital I/O lines, USB-C, a GNSS receiver and detachable LTE and Wi-Fi antennas. It runs from -40 to 75 °C, includes a firewall with CLI, HTTPS, SSH and SNMP management, mounts on a DIN rail and is TAA compliant.
Key Features
- Router, not a network adapter
- 5G cellular, dual SIM
- Wi-Fi 6 wireless
- 4 x Gigabit RJ-45 switch
- -40 to 75 °C operation
- DIN rail mount, TAA
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi IX25
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: SFTP
Remote Management: CLI, HTTPS, SNMP, SNMP 2c, SNMP 3, SSH
Authentication Method: Secure Shell (SSH)
Wireless LAN: 802.11a/b/g/n/ac/ax
Cellular Data Connectivity Technology: 5G
Features: eSIM support, Firewall protection
Connectivity
Interface Provided: Antenna: 2 x RP-SMA - Wi-Fi, Antenna: 2 x SMA - LTE, Digital input/output: 2 x, LAN: 4 x 1000Base-T - RJ-45, Serial: 1 x RS-232 - RJ-50, USB 2.0: 1 x 24 pin USB-C
Expansion Slots: 2 (total) / 2 (free) x Nano-SIM
Power
Device Type: External power adapter
Memory and Processor
Processor Type: Quad Core
Clock Speed: 1.2 GHZ
RAM Installed: 1 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Ethernet link/activity, GNSS, Power, Wi-Fi, WWAN
Built-in Devices: GNSS receiver, GPS / GLONASS / Galileo / Beidou
Dimensions and Weight
Height: 1.5 inch
Width: 4.6 inch
Depth: 5.7 inch
Weight: 20.81 ounce
Certifications and Listing
Compliant Standards #2: NMEA 4.11, TAIP
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Compliant Standards: NMEA 4.11, TAIP
TAA Compliant: Yes
Warranty
Service Activation: No
