Product Information

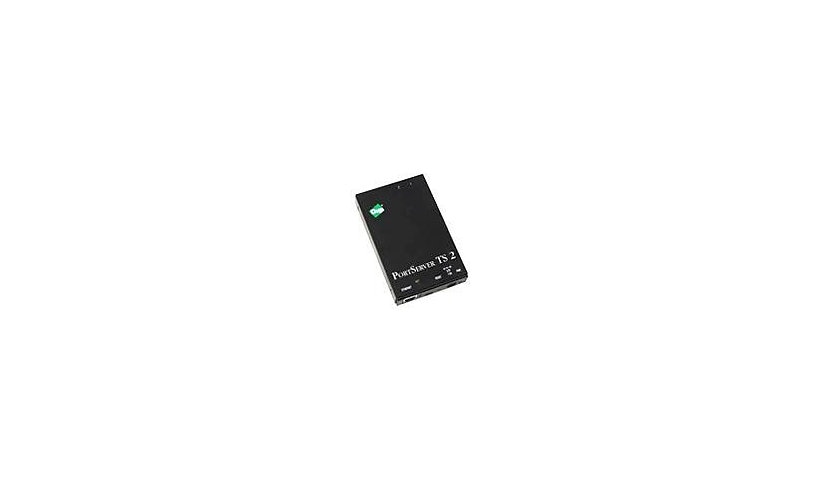

The Digi PortServer TS 2 MEI RJ-45 (70001806) is a 2 port device server that connects RS-232, RS-422 or RS-485 devices to a 10/100 Ethernet network at up to 230 Kbps. It supports SSH v2, PPP, flow control, DHCP and port buffering to capture server console data, and is managed by web and SNMP. It works with Windows, Linux, Solaris, AIX, HP-UX and SCO, uses an external power adapter and comes with a crossover cable. The spec lists PoE, while the quick specs say no PoE, so please confirm.
Key Features
- 2 serial ports, MEI
- RS-232, RS-422, RS-485
- 10/100 Ethernet
- SSH v2 security
- Port buffering
- Crossover cable included
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi PortServer
Model: TS MEI RJ-45
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, PPP, RS-232, RS-422, RS-485
Network Standard: TCP/IP, UDP/IP
Remote Management: HTTP, SNMP
Authentication Method: Secure Shell v.2 (SSH2)
Data Transfer Rate: 230 Kbps
Operating System Required: HP-UX, IBM AIX, Linux, Microsoft Windows 2000, Microsoft Windows NT, Microsoft Windows XP, SCO OpenServer, SunSoft Solaris, UnixWare
Features: ARP support, DHCP support, Flow control, RARP support
Connectivity
Ports: 2
Interface Provided: 1 x 100Base-TX - RJ-45, 2 x serial
Power Over Ethernet (PoE): PoE
Power
Device Type: External power adapter
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 0.9 inch
Width: 3.3 inch
Depth: 5.2 inch
Weight: 2.26 ounce
Included Items
Cables: 1 x crossover cable
Certifications and Listing
Compliant Standards #2: IEEE 802.3af
Compliant Standards: CSA, EN50082, FCC Class A certified, UL 1950
Compliant Standards: IEEE 802.3af
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
