Product Information

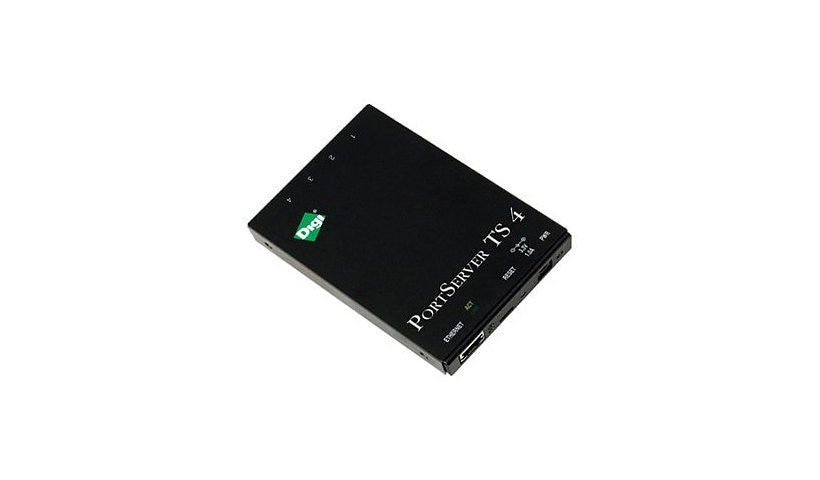

The Digi PortServer TS 4 (70002045) is a 4 port RS-232 device server with RJ-45 serial ports and one 10/100 Ethernet port, for applications needing COM ports, TCP/UDP sockets or UDP multicast. Digi RealPort makes the networked port appear as a local COM or TTY port, so existing software works unchanged. It runs at up to 230 Kbps with flow control, PPP and DHCP, is managed by web, Telnet and SNMP, supports Windows, Linux, Solaris, AIX, HP-UX, Tru64 and SCO, and uses an external power adapter.
Key Features
- 4 RS-232 RJ-45 ports
- 10/100 Ethernet
- RealPort COM redirector
- TCP/UDP and multicast
- Web, Telnet, SNMP
- Wide OS support
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi PortServer
Model: TS 4
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, PPP, RS-232
Network Standard: TCP/IP, UDP/IP
Remote Management: HTTP, SNMP, Telnet
Data Transfer Rate: 230 Kbps
Operating System Required: Compaq Tru64 UNIX, HP-UX, IBM AIX, Linux, Microsoft Windows 2000 / XP, Microsoft Windows 98/ME, Microsoft Windows NT, Microsoft Windows Server 2003, SCO OpenServer, SunSoft Solaris, UnixWare
Features: DHCP support, Flow control, Manageable, RARP support, RealPort technology
Connectivity
Ports: 4
Interface Provided: 1 x 100Base-TX - RJ-45, 4 x RS-232 - RJ-45
Power
Device Type: External power adapter
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 90%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 5.2 inch
Width: 3.3 inch
Depth: 0.9 inch
Weight: 2.26 ounce
Certifications and Listing
Compliant Standards: AS/NZS 3548, CSA 22.2 No. 950, EN 60950, EN55022 Class B, FCC Part 15 B, ICES-003 Class B, UL 1950
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
