Product Information

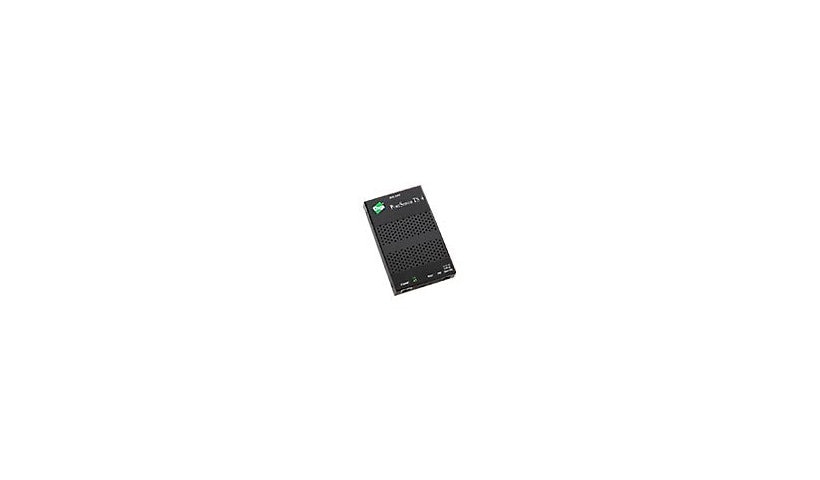

The Digi PortServer TS 4 H RJ-45 (70001919) is a hardened 4 port device server for connecting serial devices to a 10/100 network in places from -35 to +70 C. It has three RS-232 RJ-45 ports and one multi interface port for RS-232, RS-422 or RS-485, at up to 230 Kbps. It offers SSH v2, SSL and TLS, full SNMP management, low latency, PPP and DHCP, and the spec lists PoE. It works with Windows, Linux, Solaris, AIX, HP-UX and SCO and comes with a crossover cable.
Key Features
- 4 serial ports
- -35 to +70 C rated
- 10/100 Ethernet
- SSH v2, SSL, TLS
- Full SNMP management
- Crossover cable included
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi PortServer
Model: TS H RJ-45
Product Type: Device server
Packaged Quantity: 1
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, PPP, RS-232, RS-422, RS-485
Network Standard: TCP/IP, UDP/IP
Remote Management: HTTP, SNMP
Authentication Method: Secure Shell v.2 (SSH2)
Encryption: SSL, TLS
Data Transfer Rate: 230 Kbps
Operating System Required: HP-UX, IBM AIX, Linux, Microsoft Windows 2000, Microsoft Windows NT, Microsoft Windows XP, SCO OpenServer, SunSoft Solaris, UnixWare
Features: ARP support, DHCP support, Flow control, RARP support
Connectivity
Ports: 4
Interface Provided: 1 x 100Base-TX - RJ-45, 1 x serial, 3 x RS-232 - RJ-45
Power Over Ethernet (PoE): PoE
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: -31 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 90%
Physical Characteristics
Form Factor: External
Status Indicators: Link/activity, Power
Dimensions and Weight
Height: 0.9 inch
Width: 3.3 inch
Depth: 5.2 inch
Weight: 2.26 ounce
Included Items
Cables: 1 x crossover cable
Certifications and Listing
Compliant Standards #2: IEEE 802.3af
Compliant Standards: CSA, cUL, EN55022, EN55022 Class A, FCC Class A certified, UL 60950
Compliant Standards: IEEE 802.3af
Warranty
Limited Warranty: 5 Year
Service & Support Details: Limited warranty - 5 years
