Product Information

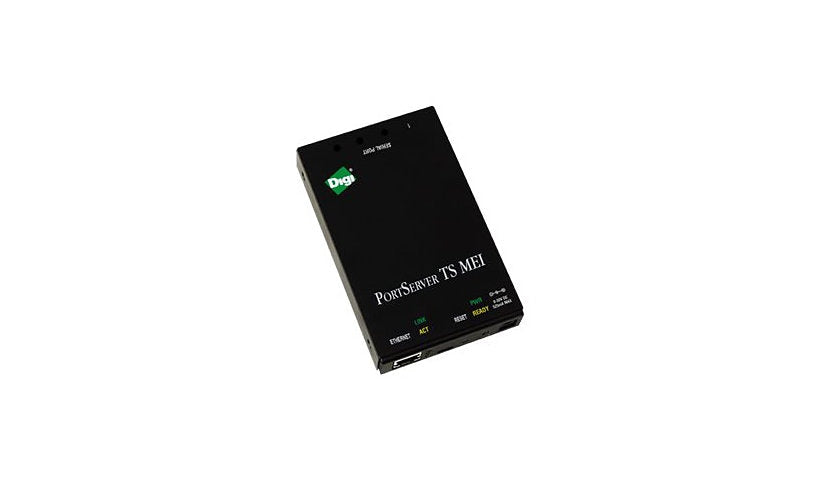

The Digi PortServer TS 4 MEI (70001807) is a 4 port device server that puts RS-232, RS-422 or RS-485 equipment on a 10/100 Ethernet network. Each port auto senses the device and supports flow control, full or half duplex and modem emulation, with surge protection and up to 230.4 Kbps. Port buffering helps capture console output from servers, and SSH v2, SSL and TLS protect traffic. It is managed by CLI, web (HTTP and HTTPS), Telnet and SNMP, and uses an external power adapter.
Key Features
- 4 serial ports, MEI
- RS-232, RS-422, RS-485
- 10/100 Ethernet
- SSH v2, SSL, TLS
- Port buffering
- Surge protection
Product Information
Brand: Digi
Manufacturer: Digi International
Product Line: Digi PortServer
Model: TS 4 MEI
Product Type: Device server
Packaged Quantity: 1
Country: North America
Network and Communication
Connectivity Technology: Wired
Data Link Protocols: Ethernet, Fast Ethernet, RS-232, RS-422, RS-485
Network Standard: ARP, DHCP, RARP, TCP/IP, UDP/IP
Remote Management: CLI, HTTP, HTTPS, SNMP, Telnet
Authentication Method: Secure Shell v.2 (SSH2)
Encryption: SSL, TLS
Data Transfer Rate: 230.4 Kbps
Features: Auto-sensing per device, DHCP support, Flow control, Full duplex mode, Half duplex mode, Manageable, Modem emulation, Surge protection
Connectivity
Ports: 4
Interface Provided: 1 x 100Base-TX - RJ-45, 4 x serial
Power
Device Type: External power adapter
Memory and Processor
Optical Drive Type: None
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 140 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor: External
Dimensions and Weight
Height: 5.2 inch
Width: 3.3 inch
Depth: 0.9 inch
Weight: 2.26 ounce
Certifications and Listing
Compliant Standards #2: IEEE 802.3
Compliant Standards: AS/NZS 3548, CB, CISPR 22, EN55022 Class A, EN55024, FCC Part 15 A, IEC 60950, UL 60950, VCCI V-3
Compliant Standards: IEEE 802.3
Not sure this console or device server fits your setup? Send us your equipment models, port counts and connection types, and the DatorPro team will confirm compatibility before you order.
