Product Information

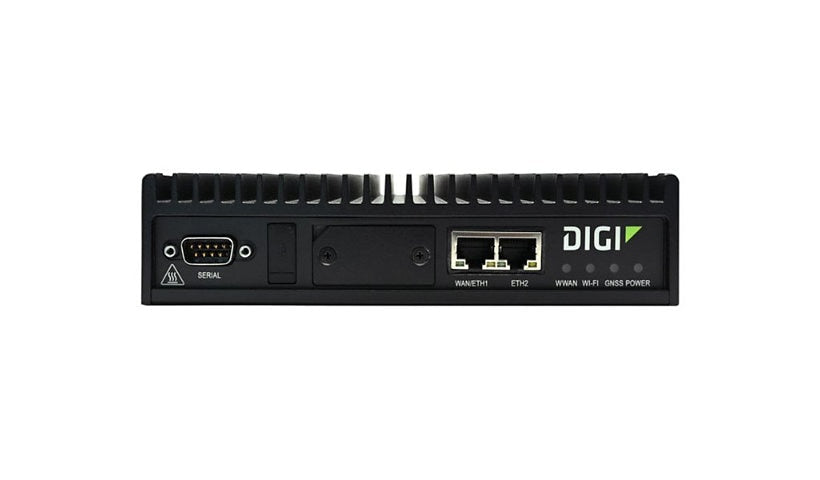

The Digi TX40 is a rugged 5G and LTE Advanced Pro Cat 20 router with Wi-Fi 6, Bluetooth 5.2, two Gigabit LAN ports, RS-232 and USB 3.0. It has 1 GB of RAM and 8 GB of flash, multi-constellation GPS, FIPS 140-2 encryption and operation from -34 to 74 C, and is listed for AT&T, T-Mobile and Verizon. It carries a 1 year limited warranty.
Key Features
- 5G and LTE Advanced Pro Cat 20, 2 x Mini SIM
- Wi-Fi 6, Bluetooth 5.2
- 2 x GbE LAN, RS-232 DB-9, USB 3.0
- BGP, OSPF, VRRP, IPsec, OpenVPN, FIPS 140-2
- 1 GB RAM, 8 GB flash, GPS
- 1 year limited warranty
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Model: TX40
Product Type: Wireless router
Product Type: Wireless cellular modem
Compatibility Specs: P/N: 76002121, 76002136
Packaged Quantity: 1
Color Category: Black
Network and Communication
Service Provider: AT&T, T-Mobile, Verizon Wireless
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 5.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DHCP, TCP, UDP
Remote Management: CLI, HTTPS, SCP, SFTP, SNMP 2, SNMP 3, SSH, Syslog
Routing Protocol: BGP, GRE, IGMP, OSPF, PPPoE, RIP-1, RIP-2, VRRP
Authentication Method: RADIUS, TACACS+, X.509 certificates
Encryption: 256-bit AES, 3DES, DES, FIPS 140-2, FIPS 197, IKEv1, IKEv2, MD5, RSA, SHA-1, SSL 3.0, WPA, WPA2, WPA3
Wireless LAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: 5G, LTE Advanced Pro Cat 20
Key Features: Firewall, USB port, VPN support
Features: Address Translation Services (ATS), Captive Portal, Content filtering, DNS server, Dynamic DNS, IP multicast, IPSec client, MAC address filtering, mDNS, NAPT support, NAT support, NTP server, OpenVPN client, Syslog support, VLAN support
Connectivity
Interface Provided: LAN: 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 3.0: 1 x 9 pin USB Type A
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Technical Information
Min Operating Temperature: -29.2 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 0 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: Ethernet link/activity, GNSS, Power, Wi-Fi, WWAN
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 1.7 inch
Width: 7.8 inch
Depth: 5.4 inch
Weight: 2.2 lbs
Certifications and Listing
Compliant Standards #2: E-mark certified, FCC Part 15 B, IC, IEC 62368-1 CB Scheme, MIL-STD-810H, PTCRB, UKCA
Compliant Standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
Compliant Standards: E-mark certified, FCC Part 15 B, IC, IEC 62368-1 CB Scheme, MIL-STD-810H, PTCRB, UKCA
Warranty
Limited Warranty: 1 Year
Service & Support Details: Limited warranty - 1 year
Service Activation: No
