Product Information

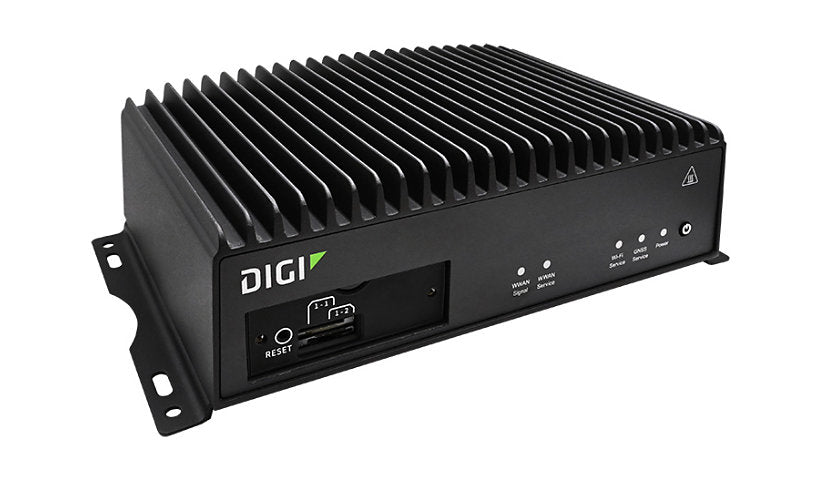

The Digi TX54 is a router for mission critical and first responder work, combining cellular with dual Wi-Fi 5, Bluetooth, a four port Gigabit switch, RS-232 and USB 3.0. Quick specs mention GNSS with untethered dead reckoning, geofencing and a terminal block with ignition sense. The title and quick specs say 5G, while the edition field reads single LTE Advanced Cat 11, so please confirm the modem.
Key Features
- Edition: single LTE Advanced Cat 11, dual Wi-Fi
- Wi-Fi 5 dual band, Bluetooth
- 1 x GbE WAN/LAN, 3 x GbE LAN, RS-232, USB 3.0
- BGP, OSPF, VRRP, IPsec, OpenVPN
- GPS, Galileo, BeiDou, GLONASS, geofencing
- Ignition sense terminal block per quick specs
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Model: TX54
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Worldwide
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, FTP, IPSec
Remote Management: HTTP, HTTPS, SCP, SFTP, SMTP, SNMP 2, SNMP 3, SSH
Routing Protocol: BGP, GRE, IPv4-to-IPv6 Multicast, OSPF, RIP-1, RIP-2, VRRP
Authentication Method: RADIUS, TACACS+, X.509 certificates
Encryption: 256-bit AES, 256-bit SHA, 384-bit SHA, 512-bit SHA, AES, IKEv1, IKEv2, MD5, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.2, Triple DES, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Data Transfer Rate: 867 MBps
Modem Transmission Data Rate: 600 MBps
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac, Bluetooth
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: FDD LTE, LTE Advanced, TDD LTE
Antennas: 8
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, Access Point operational mode, Bridge mode, Captive Portal, Content filtering, DNS server, Dual band, Dynamic DNS client, FTP client, GRE VPN tunnels, Hotspot Access Point Capability, IP address filtering, IP forwarding support, MAC address filtering, mDNS, NAPT support, NAT support, NTP server, OpenVPN client, OpenVPN server, Syslog support, Type of Service (ToS), VLAN support, Wall mountable, Web server
Edition: Single LTE-Advanced Cat 11, Dual Wi-Fi
Connectivity
Interface Provided: Antenna: 1 x - Bluetooth, Antenna: 1 x SMA - GPS, Antenna: 2 x SMA - LTE, Antenna: 4 x RP-SMA - Wi-Fi, LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 3.0: 1 x 9 pin USB Type A, WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 2 (total) / 2 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Memory and Processor
Processor Brand: MIPS
Clock Speed: 880 megahertz
Technical Information
Min Operating Temperature: -29.2 degree Fahrenheit
Max Operating Temperature: 165.2 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: GPS, Power, Service, Signal, Wi-Fi
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Dimensions and Weight
Height: 2.5 inch
Width: 8.3 inch
Depth: 5.7 inch
Weight: 3.31 lbs
Certifications and Listing
Compliant Standards #2: AS/NZS CISPR 22, E Mark, EN 45545-2, EN 50121-3-2, EN 50155, EN 55032, EN 60950, EN 62368, EN55024, FCC Part 15 B, IP54, ISO 16750-2, ISO 7637-2/3, MIL-STD 810G, SAE J1113
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards: AS/NZS CISPR 22, E Mark, EN 45545-2, EN 50121-3-2, EN 50155, EN 55032, EN 60950, EN 62368, EN55024, FCC Part 15 B, IP54, ISO 16750-2, ISO 7637-2/3, MIL-STD 810G, SAE J1113
Warranty
Service Activation: No
