Product Information

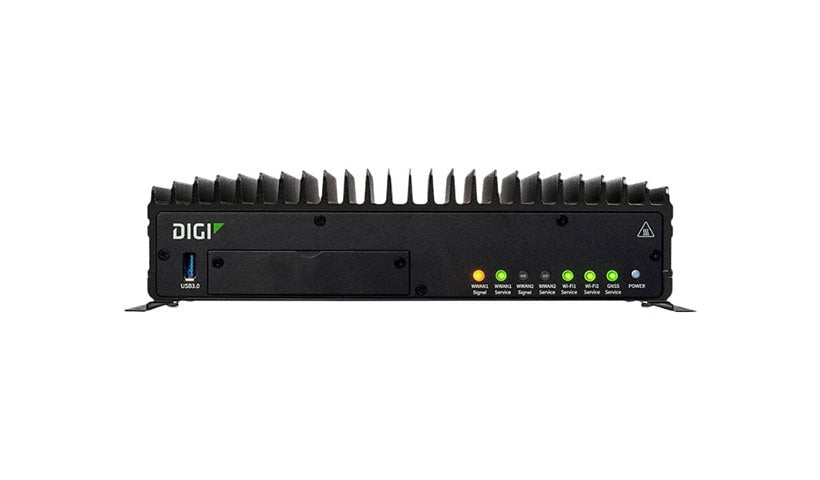

The Digi TX64 carries two cellular modules (LTE Advanced and LTE Advanced Pro) and targets transportation and mobile environments. It provides enterprise routing with BGP and OSPF, a firewall, integrated VPN, a Wi-Fi 5 access point, Bluetooth 4.2, a 4 port Ethernet switch, serial, USB and GNSS. The title mentions 5G while the cellular spec lists LTE Advanced Pro, so please confirm.
Key Features
- 2 cellular modules, 4 x Mini SIM, LTE Advanced Pro
- Wi-Fi 5 Wave 2 dual band, Bluetooth 4.2
- 1 x GbE WAN/LAN, 3 x GbE LAN
- RS-232, 3 x USB 3.0, VGA, GPS, GLONASS, Galileo, BeiDou
- BGP, OSPF, VRRP, IPsec, RADIUS, TACACS+
- 2 GB RAM, 8 GB flash, 16 antenna connectors
Product Information
Product Type #2: Wireless cellular modem
Brand: Digi
Manufacturer: Digi International
Product Line: Digi
Model: TX64
Product Type: Wireless router
Product Type: Wireless cellular modem
Packaged Quantity: 1
Color Category: Black
Country: Worldwide
Network and Communication
Connectivity Technology: Wired, Wireless
Data Link Protocols: Bluetooth 4.2, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ac Wave 2, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Network Standard: DDNS, DHCP, FTP, IPSec
Remote Management: HTTP, HTTPS, NTP, SCP, SFTP, SMTP, SNMP 2, SNMP 3, SSH
Routing Protocol: BGP, GRE, IPv4-to-IPv6 Multicast, OSPF, RIP-1, RIP-2, VRRP
Authentication Method: RADIUS, TACACS+, X.509 certificates
Encryption: 256-bit AES, 256-bit AES-CBC, 256-bit SHA, 384-bit SHA, 512-bit SHA, AES, AES-CBC, DH, IKEv1, IKEv2, MD5, RSA, SHA-1, SSL, SSL 2.0, SSL 3.0, TLS 1.2, Triple DES, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Data Transfer Rate: 1.733 GBps
Integrated Switch: 4-port switch
Wireless LAN: 802.11a/b/g/n/ac, 802.11a/b/g/n/ac Wave 2, Bluetooth 4.2
Broadband Transmission Technology: 2.4 GHz / 5 GHz
Cellular Data Connectivity Technology: LTE Advanced Pro
Antennas: 16
Antenna Form Factor: External detachable
Key Features: Firewall, USB port, VPN support
Features: 2x2 MIMO technology, 4x4 MIMO Backhaul Technology, Access Point operational mode, Automated failover, Bridge mode, Captive Portal, Content filtering, DNS server, Dual band, Dynamic DNS client, FTP client, GRE VPN tunnels, Hotspot Access Point Capability, IP address filtering, IP forwarding support, MAC address filtering, mDNS, MU-MIMO technology, Multicast routing, NAPT support, NAT support, NTP server, OpenVPN client, OpenVPN server, Syslog support, Type of Service (ToS), Untethered Dead Reckoning (UDR), VLAN support, Web server
Connectivity
Interface Provided: Antenna: 1 x - Bluetooth, Antenna: 1 x SMA - GPS, Antenna: 6 x RP-SMA - Wi-Fi, Antenna: 8 x SMA - LTE, LAN: 3 x 10Base-T/100Base-TX/1000Base-T - RJ-45, Serial: 1 x RS-232 - 9 pin D-Sub (DB-9), USB 3.0: 3 x 9 pin USB Type A, Video: 1 x VGA - 15 pin HD D-Sub (HD-15), WAN / LAN: 1 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Expansion Slots: 4 (total) / 4 (free) x Mini-SIM
WAN Ports Quantity: 1
Power
Device Type: External power adapter
Memory and Processor
RAM Installed: 2 GB
Flash Memory Installed: 8 GB
Technical Information
Min Operating Temperature: -22 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Physical Characteristics
Form Factor (Hubs & Switches): Desktop
Status Indicators: LAN, Link/activity, Power, Service, Signal
Built-in Devices: Beidou, Galileo, GLONASS, GPS
Installed Quantity: 2
Dimensions and Weight
Height: 2.6 inch
Width: 10.2 inch
Depth: 7.7 inch
Weight: 7.28 lbs
Certifications and Listing
Compliant Standards #2: CSA 22.2 No. 60950, E Mark, EN 301 489-1-17, EN 55032 Class B, EN 62368, EN55024, FCC CFR47 Part 15 B, IEEE 802.3, IP40, ISO 10605:2008, ISO 16750-2, ISO 7637-2/3, MIL-STD 810G, PTCRB, SAE J1113, SAE J1455, UL 60950
Compliant Standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3
Compliant Standards: CSA 22.2 No. 60950, E Mark, EN 301 489-1-17, EN 55032 Class B, EN 62368, EN55024, FCC CFR47 Part 15 B, IEEE 802.3, IP40, ISO 10605:2008, ISO 16750-2, ISO 7637-2/3, MIL-STD 810G, PTCRB, SAE J1113, SAE J1455, UL 60950
Warranty
Service Activation: No
