Product Information

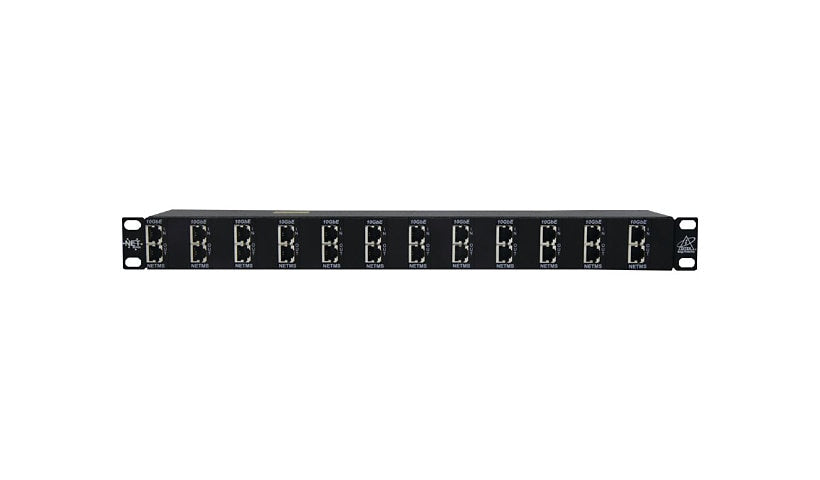

The DITEK DTK-RM12NETS is an upgradeable 12 channel 1U rack mount surge protector guarding shielded Ethernet lines, PoE runs and PoE extender links, supporting data up to 10GbE and 4PPoE, with 20,000 A max spike current over 12 RJ-45 in and out. Backed by a 10 year limited warranty.
Key Features
- 12 channel, 1U rack
- Up to 10GbE
- 4PPoE support
- 20,000 A spike rating
- Upgradeable
- 10 year limited warranty
Product Information
Brand: DITEK
Manufacturer: Pelco
Product Line: DITEK
Model: DTK-RM12NETS
Product Type: PoE surge protector
Subcategory: Surge protection and power conditioning
Packaged Quantity: 1
Color Category: Black
Connectivity
Interface Provided: 12 x 10 Gigabit LAN - RJ-45
Power Over Ethernet (PoE): 4PPoE
Output Connector Quantity: 12
Power
Power Output Connectors Details: 12 x RJ-45
Form Factor (Power Device): Rack-mountable
Input Connectors: 12
Max Spike Current: 20000 ampere
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 158 degree Fahrenheit
Operating Humidity: 95% (non-condensing)
Physical Characteristics
Height (Rack Units): 1
Dimensions and Weight
Height: 1.8 inch
Width: 19 inch
Depth: 2.8 inch
Weight: 3.75 lbs
Certifications and Listing
Compliant Standards #2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3, IEEE 802.3bt Type 4
Compliant Standards: RoHS, UL 497B
Compliant Standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3, IEEE 802.3bt Type 4
ENERGY STAR Certified: No
Warranty
Limited Warranty: 10 Year
Service & Support Details: Limited warranty - 10 years
