Product Information

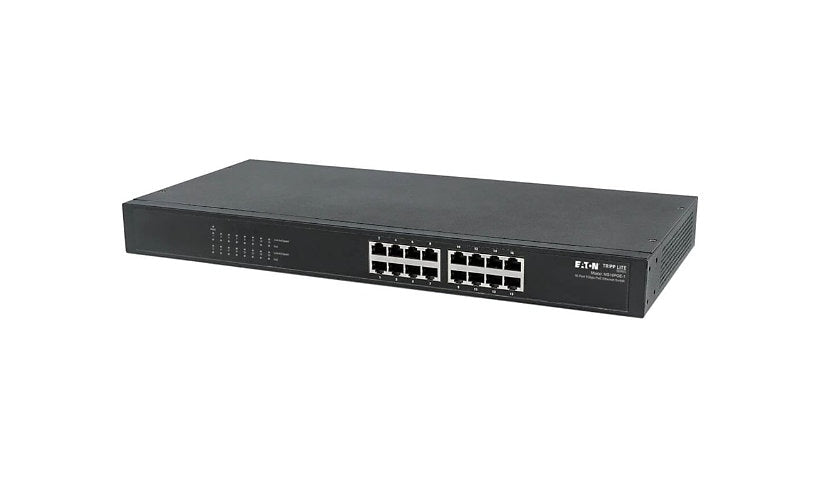

Eaton's NG16POE-1 is an unmanaged switch with sixteen Gigabit PoE+ ports at up to 30 W each on a 220 W budget. It has 36 Gbps of capacity, runs fanless with an internal power supply and includes rack brackets and rubber feet.
Key Features
- 16 x Gigabit PoE+ ports, 30 W each
- 220 W PoE budget
- 36 Gbps switching capacity
- Fanless, internal power supply
- Rack brackets and rubber feet included
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 36 Gbps
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Fanless, Flow control
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000 (PoE+)
Interface Provided: 16 x 1000Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 400 watt
PoE Budget: 220 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: 14 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, PoE, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 3.5 inch
Width: 11.6 inch
Depth: 21.9 inch
Weight: 9.04 lbs
Included Items
Included Accessories: 2 rack mount brackets, 4 rubber feet, 8 screws
Certifications and Listing
Compliant Standards: AN/CSA-C22.2 No. 62368-1 (Canada), FCC Part 15 Class B (USA), IEC 62368-1, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, Plug and Play, REACH, RoHS, UKCA, UL 62368-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
