Product Information

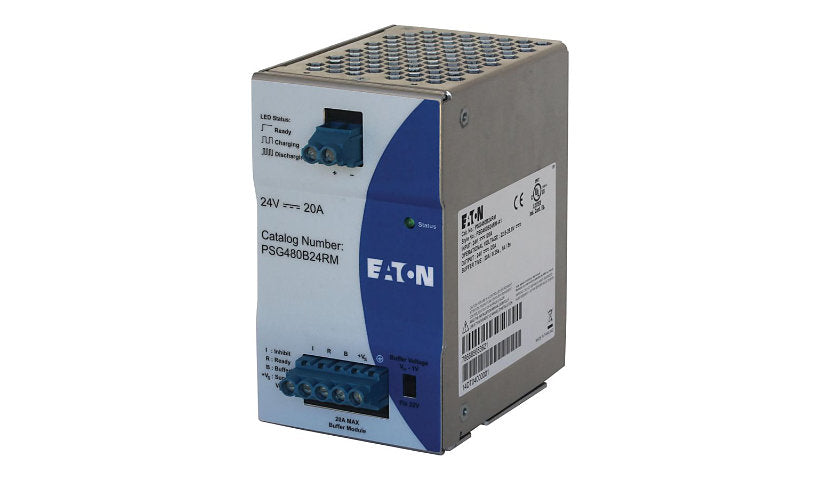

The Eaton PSG480B24RM is listed as a power supply and described as a buffer module for 24 V DC systems. It takes 22.8 to 28.8 V DC input through screw terminals and delivers 480 W at 24 V DC with up to 20 A. It mounts on a DIN rail and has an aluminum enclosure, active polarity protection and LED indicators. It operates from -25 to 75 °C at 0 to 95 percent humidity, with MTBF over 800,000 hours.
Key Features
- 480 W at 24 V DC
- Buffer module
- 22.8 to 28.8 V DC input
- DIN rail mount
- -25 to 75 °C operation
- MTBF over 800,000 hours
Product Information
Brand: Eaton
Manufacturer: Powerware Systems
Product Line: Eaton
Product Type: Power Supply
Subcategory: Power supplies
Packaged Quantity: 1
Color Category: Blue, Silver
Power
Input Voltage Range: DC 22.8 - 28.8 V
Required Voltage: DC 24 volt
Power Device Features: Active polarity protection, Aluminum enclosure, LED indicators
Input Connector Type: Terminal block (screw)
Power Provided: 480 watt
Form Factor (Power Device): DIN rail mountable
Power Supply Compatibility: Network hardware
Max Input Current: 20 ampere
Provided Voltage: DC 24 volt
Technical Information
Min Operating Temperature: -13 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 0 - 95% RH (non-condensing)
MTBF: > 800,000 Hours
Dimensions and Weight
Height: 4.7 inch
Width: 2.8 inch
Depth: 4.8 inch
Weight: 26.81 ounce
Certifications and Listing
Compliant Standards: CAN/CSA C22.2 No. 213, Class 1, CSA C22.2 No. 107.1, DIN 57100-410, EMC 2004/108/EC, EN 50178, EN 55011, EN 60204, EN 60950, EN 61000-3-2, EN 61000-3-3, EN 61204-3, EN55022, IEC 60204-1, IEC 62103, IP20, LVD 2006/95/EC, RoHS, UL 508
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
