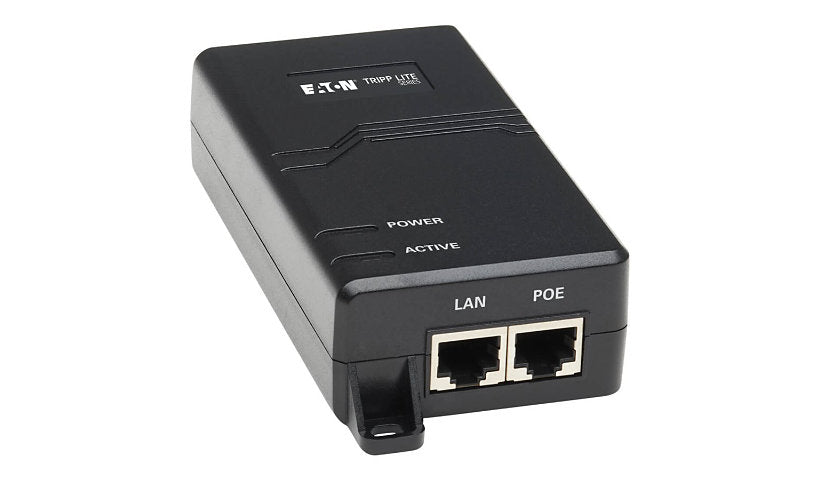

Product Information
Add a security camera, wireless access point, VoIP phone or other PoE device to your network even if your switch does not support PoE. This single-port injector sends up to 30 watts of power along with 10/100/1000 Mbps data over your existing Cat5e/6/6a cable, so you skip the cost of a PoE switch and new AC wiring.
It powers any IEEE 802.3at (PoE+) or 802.3af (PoE) device up to 100 meters (328 ft) away, perfect for lobbies, ceilings, warehouses or anywhere without an outlet. It supports full-duplex 2 Gbps traffic and protects your device from short circuits, overloads and surges.
Setup needs no software: connect your switch to the shielded RJ45 Data port and your PoE device to the Power + Data port, then plug the C14 inlet into a NEMA 5-15R outlet with the included cord. LEDs show power and data status. Mounting holes let you fix it to a shelf, desk or wall, and the palm-sized, fanless housing runs silently.
Specifications:
Brand: Tripp Lite
Manufacturer part number: NPOE-30W-1G
Product line: Eaton Tripp Lite Series
Cable type: PoE Injector
Height: 1.4 inch
Width: 2.6 inch
Color: Black
Operating temperature: 32°F to 122°F
Quantity in package: 1
Standards and compliance: FCC, Plug and Play, REACH, RoHS, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Warranty: 3 Year
Power: up to 30 W per port
Reach: up to 100 m (328 ft)
Data: 10/100/1000 Mbps
