Product Information

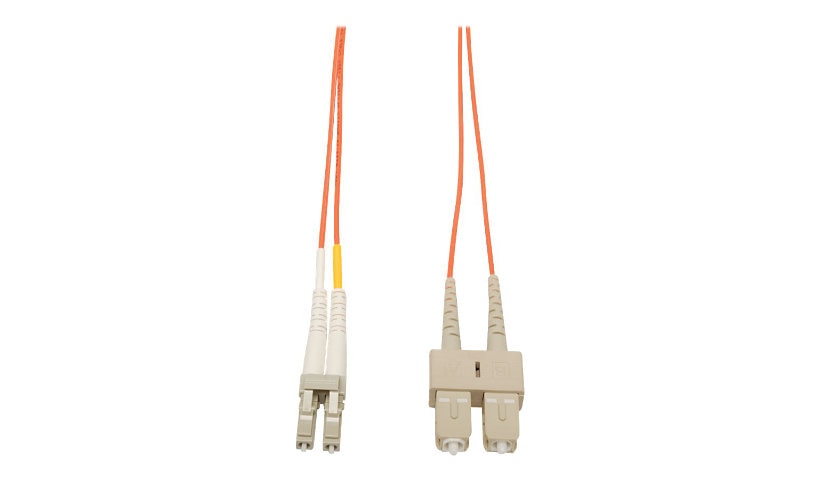

A 2 meter (6ft) Tripp Lite multimode duplex patch cable made from 50/125 zipcord fiber, with LC connectors on one end and SC connectors on the other. The PVC jacket is FDDI and OFNR rated, and the cable is well suited to fiber and Fibre Channel installations. It delivers higher bandwidth for Gigabit and 10 Gbps networks, leaves headroom for future applications and is backward compatible with 62.5 micron fiber.
Fiber details:
Length: 2 meters
Connectors: SC male to LC male
Number of fibers: 2
Fiber type: all-glass, graded index
Core diameter: 50 ±3 microns (x2)
Cladding diameter: 125 ±2 microns
Primary coating: acrylate, 245 ±15 microns
Secondary coating: PVC, 900 ±50 microns
Maximum attenuation: 3.5 dB/km at 850 nm, 1.0 dB/km at 1300 nm
Minimum bandwidth: 220 MHz·km at 850 nm, 600 MHz·km at 1300 nm
Numerical aperture: 0.275 nominal
Proof test level: 100,000 PSI
Insertion loss: tested on every connector (0.2 dB typical), results included
Beveled glass ends for easy plug insertion
Warranty: lifetime, covering defects in materials and workmanship
Specifications:
Brand: Tripp Lite
Manufacturer part number: N516-02M
Product line: Eaton Tripp Lite Series
Cable type: Patch cable
Fiber mode: Multimode
Strand configuration: Duplex
Core/cladding: 50/125 µm
Fiber count: 2
Connector, end A: 2 x SC multimode (male)
Connector, end B: 2 x LC multimode (male)
Jacket: PVC
Length: 2 m (6.6 ft)
Color: Orange
Quantity in package: 1
Warranty: Limited Lifetime
