Product Information

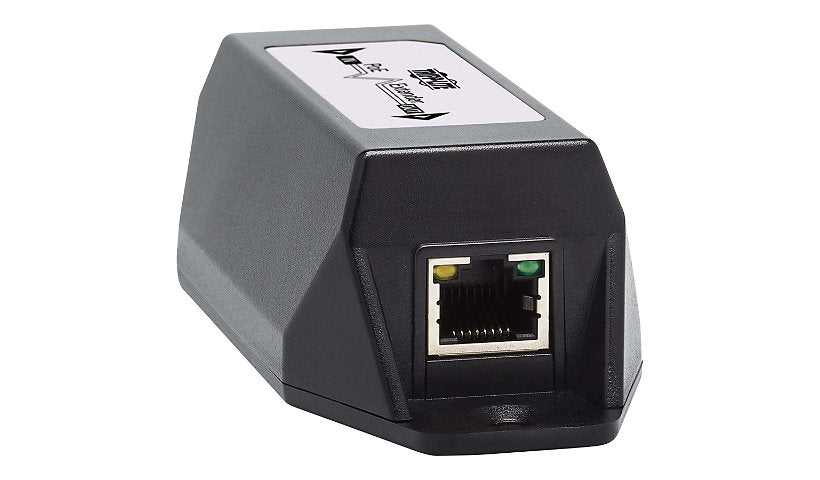

This single-port extender adds another 328 ft (100 m) between your PoE source, such as a PoE switch, and a remote PoE device. Cascade up to four extenders to reach 1640 ft (500 m) in total by placing one between each run of Cat5e/6/6a cable up to 328 ft.
It carries 10/100/1000 Mbps data and up to 30 W of power over existing cable, so you avoid new AC wiring and outlets, and it automatically detects PoE/PoE+ gear to protect it from damage. It is a good fit for cameras, VoIP phones, POS kiosks and access control devices.
Specifications:
Brand: Tripp Lite
Manufacturer part number: NPOE-EXT-1G30
Product line: Eaton Tripp Lite Series
Cable type: Network extender
Features: Cascadable, Full duplex mode, Half duplex mode, Wall mountable
Color: Black
Operating temperature: 14°F to 113°F
Quantity in package: 1
Standards and compliance: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, FCC, Plug and Play, REACH, RoHS
Warranty: 3 Year
Power: up to 30 W
Reach: 328 ft per segment, up to 1640 ft with 4 cascaded
