Product Information

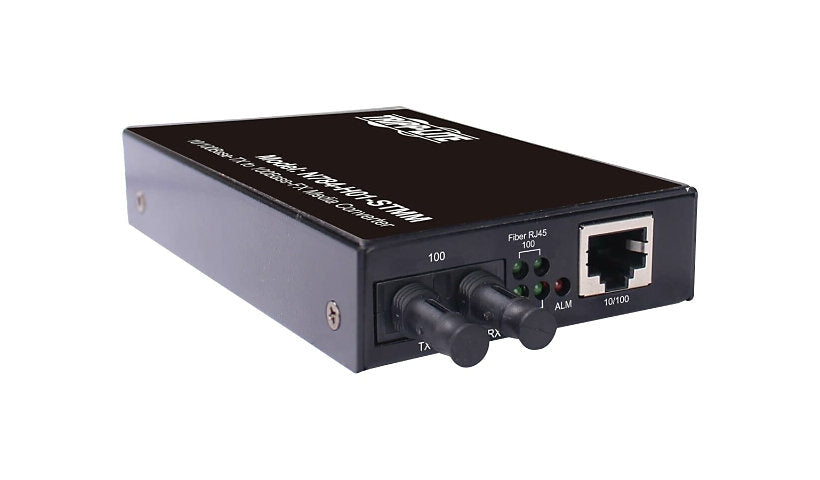

This media converter turns copper Ethernet into multimode fiber and carries it to a second device up to 2 km (1.2 miles) away. Since Cat5e/6 copper stops at 100 meters, pairing the N784-H01-STMM with ST duplex multimode fiber is the better way to reach 10/100Base-TX/FX hubs, switches and other devices farther out. Auto-negotiation and auto MDI/MDI-X connect devices without crossover cables.
Link Fault Signaling (LFS) lights up when a copper or fiber cable is cut or service drops, and Local and Remote Loop Back tests confirm both cables are installed correctly, all set by DIP switches. Side LEDs show network speed, connection, diagnostics and power.
The hardened aluminum case runs from -10 to 60°C (14 to 140°F) and is shielded against ESD, RFI and power surges, with hardware included for wall or DIN mounting. Up to 12 converters can be housed and powered in the N785-CH12 chassis (sold separately). It is TAA compliant for GSA Schedule and other federal purchases.
Specifications:
Brand: Tripp Lite
Manufacturer part number: N784-H01-STMM
Product line: Eaton Tripp Lite Series
Cable type: Fiber media converter
Data rate: 100 MBps
Features: Auto-uplink (auto MDI/MDI-X), Hardened
Height: 0.9 inch
Width: 2.9 inch
Weight: 8.46 ounce
Color: Black
Operating temperature: 14°F to 140°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: IEEE 802.3, IEEE 802.3u, FCC, LPS, RoHS, UL, WEEE
Reach: up to 2 km over ST multimode
