Product Information

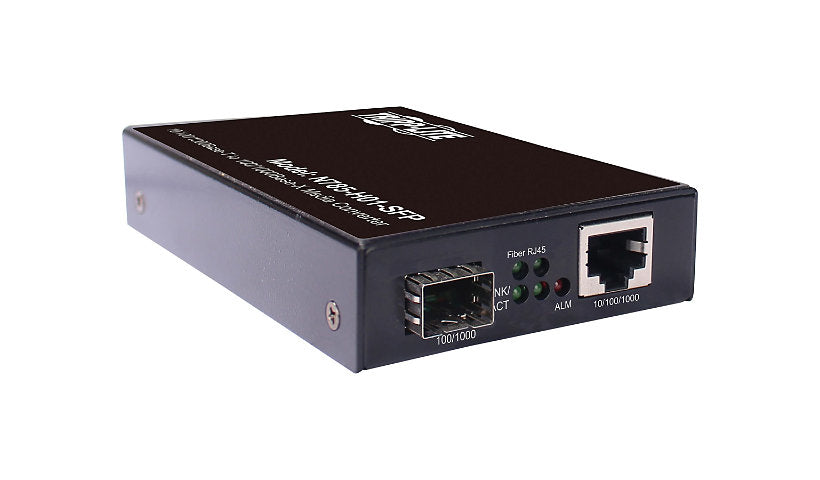

This media converter works with many SFP transceivers to turn copper Gigabit Ethernet into fiber and carry it to a second device. The open SFP port takes singlemode or multimode modules, so you can reach hubs, switches and other gear beyond copper's 100 meter limit, and auto-negotiation with auto MDI/MDI-X connects devices without crossover cables.
Link Fault Signaling (LFS) lights up when a copper or fiber cable is cut or service drops, and Local and Remote Loop Back tests confirm both cables are installed correctly, all set by DIP switches. Side LEDs show network speed, connection, diagnostics and power.
The hardened aluminum case runs from -10 to 60°C (14 to 140°F). It is shielded against ESD, RFI and power surges, and hardware is included for wall or DIN mounting. Up to 12 converters can be housed and powered in the N785-CH12 chassis (sold separately). It is TAA compliant for GSA Schedule and other federal purchases.
Specifications:
Brand: Tripp Lite
Manufacturer part number: N785-H01-SFP
Product line: Eaton Tripp Lite Series
Cable type: Fiber media converter
Features: Auto-uplink (auto MDI/MDI-X), Metal housing
Height: 0.9 inch
Width: 2.9 inch
Weight: 8.43 ounce
Color: Black
Operating temperature: 14°F to 140°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, FCC, LPS, RoHS, UL, WEEE
