Product Information

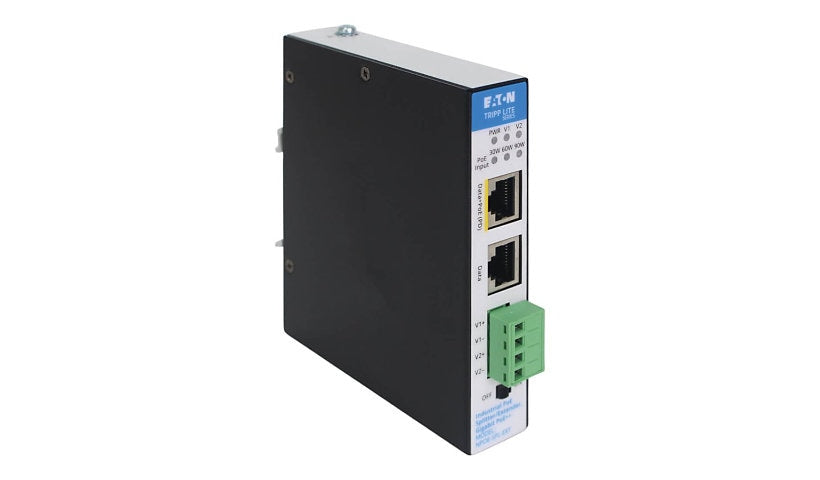

The NPOE-SPL-EXT takes a single high-power PoE connection and splits it into Gigabit Ethernet data and 24V DC power, so non-PoE equipment can run in harsh industrial spaces. It uses your existing IEEE 802.3bt PoE++ setup, removes the need for local outlets and extends the PoE signal up to 328 ft (100 m) over Cat5e/6/6a.
It is a good fit for factories, warehouses, transportation, edge computing, government, military, food processing, security and smart buildings. The metal housing resists shock, vibration and electromagnetic interference, has an on/off switch, mounts on a DIN rail and runs from -40 to 60°C. It is TAA compliant.
Specifications:
Brand: Eaton
Manufacturer part number: NPOE-SPL-EXT
Product line: Eaton Tripp Lite Series
Cable type: PoE Splitter
Features: 100 m range, Electromagnetic-resistant, Metal housing, On/off switch, Shock-resistant, Vibration-resistant
Height: 1 inch
Width: 4.6 inch
Weight: 10.23 ounce
Color: Black & white
Operating temperature: -40°F to 140°F
Quantity in package: 1
TAA compliant: Yes
Standards and compliance: CAN/CSA C22.2, FCC (USA), GSA, IP30, Plug and Play, UL, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u
Warranty: 3 Year
Output: Gigabit data plus 24V DC
Reach: up to 100 m
