Product Information

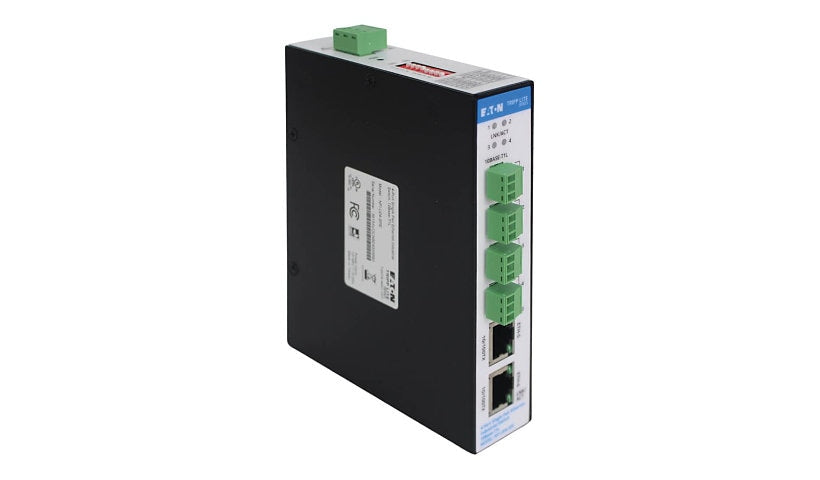

Eaton's Tripp Lite NFI-U04-SPE is an industrial single pair Ethernet switch with four 10Base-T1L ports that reach up to 1000 m, plus two 10/100 RJ-45 uplinks. It eases migration from legacy fieldbus wiring, runs from -40 to 75 °C on DC power and mounts on a DIN rail or wall. It is TAA compliant.
Key Features
- 4 x 10Base-T1L SPE ports, up to 1000 m
- 2 x 10/100 RJ-45 uplinks
- Operating range -40 to 75 °C
- Storm control, EMI protection
- About 4 W, DC power
- DIN rail or wall mount, TAA compliant
Product Information
Brand: Eaton
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Ethernet
Manageable: No
Performance: Switching capacity: 480 Mbps
MAC Address Table Size: 1000 entries
Jumbo Frame Support: 1536 bytes
Features: EMI protection, Flow control, Metal housing, Outdoor, Rugged, Storm Control
Connectivity
Ports: 4
Port Quantity: 4
Port Type: 10Base-T1L
Ports (2nd) Quantity: 2
Ports Type (2nd): 10/100Base-TX (uplink)
Interface Provided: 2 x 10/100 Base-T RJ-45 uplink, 4 x 10Base-T1L 3 pin Phoenix
Power
Required Voltage: DC 12 - 48 volt
Power Consumption Operational: 4 watt
Technical Information
Min Operating Temperature: -40 degree Fahrenheit
Max Operating Temperature: 167 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 176 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable, Wall-mountable
Status Indicators: Link/activity, Power, Signal, Uplink
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.2 inch
Width: 5.4 inch
Depth: 4.1 inch
Weight: 17.28 ounce
Included Items
Included Accessories: DIN-rail mounting kit
Certifications and Listing
Compliant Standards: CSA (Canada), GSA, ICES (Canada), IP30, RoHS, UL
Compliant Standards: IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
