Product Information

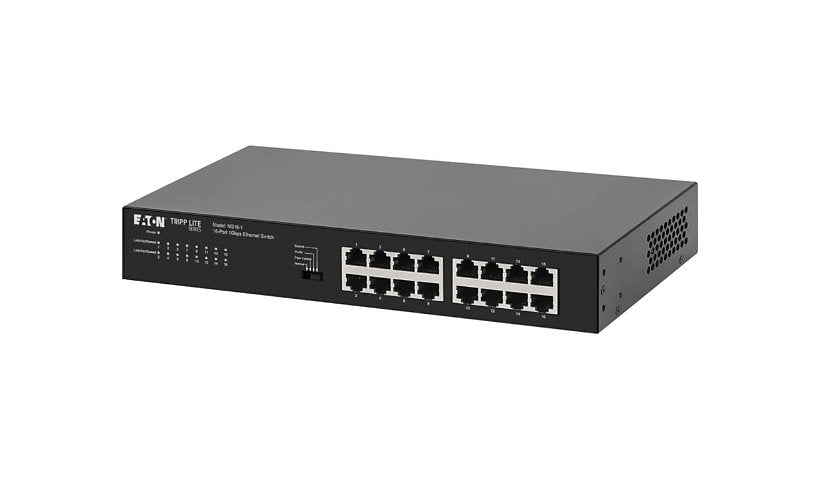

Eaton's Tripp Lite NG16-1 is an energy efficient unmanaged switch with sixteen Gigabit ports and 32 Gbps of capacity. It is fanless, uses about 10 W and comes with rack brackets and rubber feet so you can rack it or set it on a desk.
Key Features
- 16 x Gigabit RJ-45 ports
- 32 Gbps switching capacity
- Unmanaged, plug and play
- Fanless, about 10 W
- Rack brackets and rubber feet included
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: NG-16-1
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 32 Gbps
MAC Address Table Size: 8192 entries
Jumbo Frame Support: 10000 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Crossover detection, Energy Efficient Ethernet, Fanless, Flow control, Full duplex capability, MAC address aging, MAC address learning
Connectivity
Ports: 16
Port Quantity: 16
Port Type: 10/100/1000
Interface Provided: 16 x 1000Base-T RJ-45
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 10 watt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Height (Rack Units): 1
Status Indicators: Link/activity, Port status, Port transmission speed, Power
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 4.9 inch
Depth: 11 inch
Weight: 3.2 lbs
Included Items
Included Accessories: 2 rack mount brackets, 4 rubber feet, 8 screws
Certifications and Listing
Compliant Standards: AN/CSA-C22.2 No. 62368-1 (Canada), FCC Part 15 Class B (USA), IEC 62368-1, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, Plug and Play, REACH, RoHS, UKCA, UL 62368-1
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
