Product Information

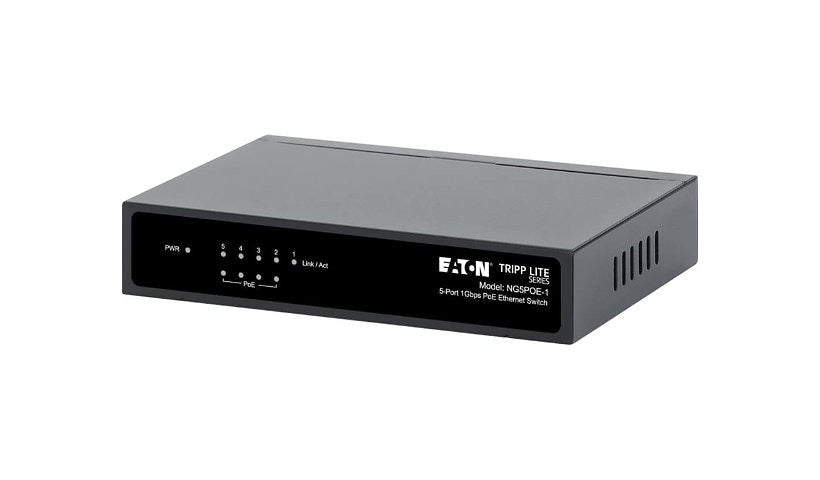

Eaton's Tripp Lite NG5POE-1 is an unmanaged desktop switch with five Gigabit PoE+ ports and a 65 W budget, plus PoE pass-through. It is fanless in a metal housing, runs from a 51 V DC adapter and can be wall mounted.
Key Features
- 5 x Gigabit PoE+ ports
- 65 W PoE budget
- PoE pass-through
- 10 Gbps switching capacity
- Fanless metal housing
- Desktop or wall mount
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Desktop Gigabit Ethernet Unmanaged Switch PoE+ Pass-Through 5-Port 10/100/1000 Mbps 65W
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Port switching capacity: 2 Gbps, Switching capacity: 10 Gbps
Jumbo Frame Support: 9216 bytes
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Crossover detection, Fanless, Flow control, Full duplex mode, Half duplex mode, MAC address auto-aging, MAC address auto-learning, Metal housing, PoE Pass Through
Connectivity
Ports: 5
Port Quantity: 5
Port Type: 10/100/1000Base-T (PoE+)
Interface Provided: 5 x 10/100/1000 Base-T RJ-45 PoE+ - 30 W
Power Over Ethernet (PoE): PoE+
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Consumption Operational: 63.75 watt
PoE Budget: 65 watt
Provided Voltage: DC 51 volt
Output Current: 1.25 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 90% RH (non-condensing)
Min Storage Temperature: 32 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Link/activity, PoE, Power
Dimensions and Weight
Height: 1.1 inch
Width: 5.5 inch
Depth: 3.1 inch
Weight: 26.81 ounce
Certifications and Listing
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, FCC Part 15 A, FCC Part 15 B, NOM, Plug and Play, RoHS, UKCA, UL 62368-1
Compliant Standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
