Product Information

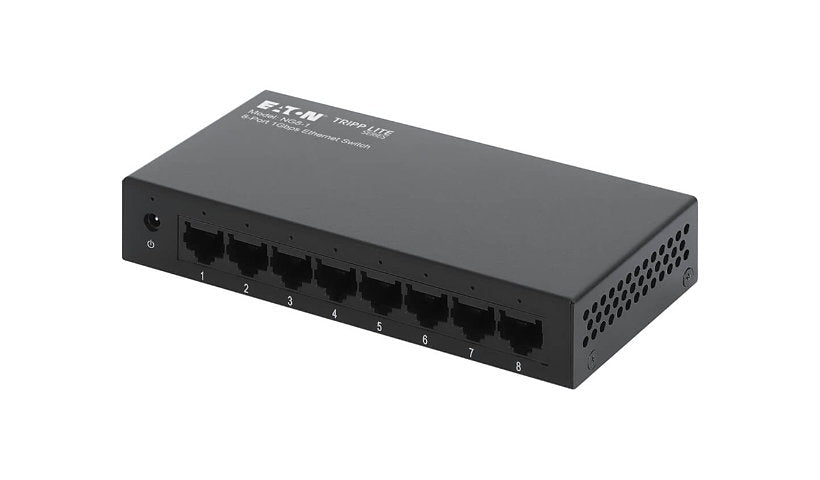

The Eaton Tripp Lite NG8-1 links eight devices on a Gigabit network in a fanless metal case with 16 Gbps of capacity. It is energy efficient, runs from a 5 V DC adapter and can be wall mounted.
Key Features
- 8 x Gigabit RJ-45 ports
- 16 Gbps switching capacity
- Energy Efficient Ethernet
- Fanless metal housing
- Desktop or wall mount
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Model: Desktop Gigabit Ethernet Unmanaged Switch 8-Port 10/100/1000 Mbps Metal
Product Type: Switch
Subcategory: Network hubs and switches
Compatibility Specs: P/N: N200-003-BL, N200-005-BL, N200-010-BL, N200-015-BL, N200-025-BL, N201-001-BK, N201-005-BK, N201-010-BK, N201-014-BK, N201-025-BK, N201-S03-BL, N201-S05-BL, N201-S07-BL, N201-S15-BL, N202-025-BL, N202-050-BL, WEXT1A
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Port switching capacity: 2 Gbps, Switching capacity: 16 Gbps
Jumbo Frame Support: 9KB
Features: Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Energy-Efficient Ethernet (EEE), Fanless, Flow control, Full duplex mode, Half duplex mode, MAC address auto-aging, MAC address auto-learning, Metal housing
Connectivity
Ports: 8
Port Quantity: 8
Port Type: 10/100/1000
Interface Provided: 8 x 10/100/1000Base-T RJ-45
Power
Device Type: External power adapter
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Electric Current Required: 0.25 A
Provided Voltage: DC 5 volt
Output Current: 1 ampere
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 10 - 90% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Wall-mountable
Status Indicators: Power, Status
Dimensions and Weight
Height: 1.1 inch
Width: 5.5 inch
Depth: 3 inch
Weight: 8.46 ounce
Certifications and Listing
Compliant Standards: IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Compliant Standards: CAN/CSA-C22.2 No. 62368-1, EN 55032, EN 55035, FCC Part 15 B, Plug and Play, RoHS, UKCA, UL 62368-1
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
