Product Information

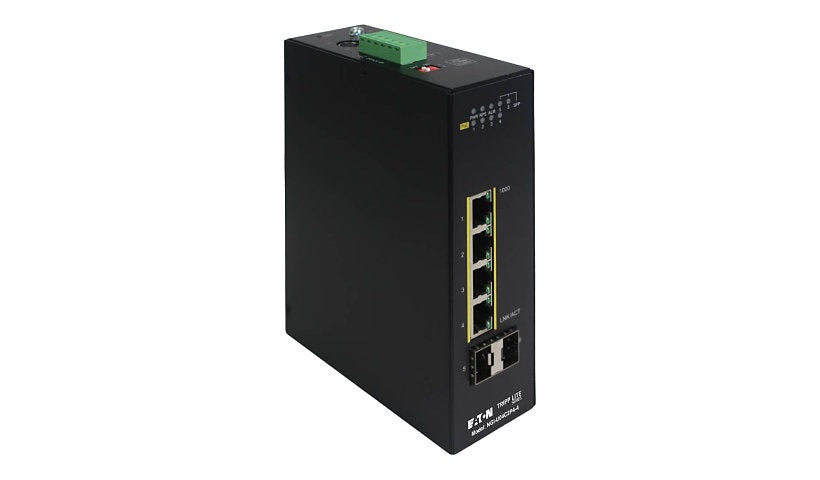

Eaton's Tripp Lite NGI-U04C2P4-4 is a fanless unmanaged industrial switch with four Gigabit PoE+ ports and two Gigabit SFP uplinks on a 120 W budget. It supports redundant power and DIN rail mounting and is TAA compliant. The title gives -10 to 60 °C while the max temperature field is clearly wrong, so please confirm.
Key Features
- 4 x Gigabit PoE+ ports, 30 W each
- 2 x Gigabit SFP uplinks
- 120 W PoE budget
- 12 Gbps switching capacity
- Redundant power, DIN rail
- TAA compliant
Product Information
Brand: Eaton
Manufacturer: Tripp Lite
Product Line: Eaton Tripp Lite series
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color: Black
Color Category: Black
Network and Communication
Switching Type: Gigabit Ethernet
Manageable: No
Performance: Switching capacity: 12 Gbps
MAC Address Table Size: 8K entries
Jumbo Frame Support: 10000 bytes
Features: 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), Auto-negotiation, Auto-uplink (auto MDI/MDI-X), Fanless, Flow control, MAC address auto-learning, Metal housing, Quality of Service (QoS), Rugged, Storm Control
Connectivity
Ports: 4
Port Quantity: 4
Port Type: 10/100/1000 (PoE+)
Ports (2nd) Quantity: 2
Ports Type (2nd): 1000Base-X SFP (uplink)
Interface Provided: 2 x 1000Base-X SFP, 4 x 10/100/1000 Base-T (PoE) RJ-45 30 W
Power Over Ethernet (PoE): PoE+
Power
Required Voltage: DC 48 - 57 volt
Power Consumption Operational: 13 watt
PoE Budget: 120 watt
Redundant Power Supply: Yes
Technical Information
Min Operating Temperature: 14 degree Fahrenheit
Max Operating Temperature: 42.8 degree Fahrenheit
Operating Humidity: 5 - 95% RH (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 185 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): DIN rail mountable
Status Indicators: Alarm, Link/activity, PoE, Port transmission speed, Power, RPS (Redundant Power Supply), SFP
Dimensions and Weight
Height: 6.3 inch
Width: 2 inch
Depth: 4.7 inch
Weight: 32.45 ounce
Included Items
Included Accessories: Dust cover
Certifications and Listing
Compliant Standards: IP30, Plug and Play, RoHS
Compliant Standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
TAA Compliant: Yes
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
