Product Information

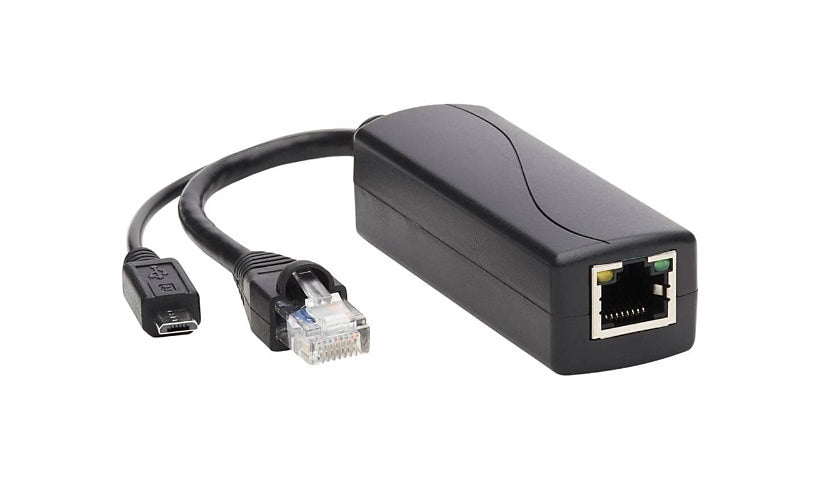

Eaton's Tripp Lite NPOE-SPL-G-5VMU is an active 802.3af splitter that takes 48 V PoE from a switch or injector up to 100 m (328 ft) away and splits it into 5 V 1 A (5 W) power on a USB Micro-B plug plus Gigabit data on an RJ-45 plug. This is a splitter, not an injector.
Key Features
- 802.3af PoE input, 48 V
- 5 V 1 A USB Micro-B output
- Gigabit RJ-45 data output
- Up to 100 m (328 ft)
- Plug and play
Product Information
Brand: Tripp Lite
Manufacturer: Tripplite Cables
Product Line: Eaton Tripp Lite Series
Model: PoE to USB Micro-B and RJ45 Active Splitter - 802.af, 48V to 5V 1A, Up to 328 ft. (100 m)
Product Type: PoE Splitter
Subcategory: Power converters, splitters and accessories
Packaged Quantity: 1
Color: Black
Color Category: Black
Connectivity
Interface Provided: 1 x Gigabit LAN - RJ-45
Power Over Ethernet (PoE): PoE
Output Connector Quantity: 1
Power
Required Voltage: DC 48 volt
Input Connector Type: RJ-45
Power Output Connectors Details: 1 x 5 pin Micro-USB Type B - 5 V 1 A
Power Provided: 5 watt
Form Factor (Power Device): External
Input Connectors: 1
Max Input Current: 1 ampere
Provided Voltage: 5 volt
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 0 - 90% (non-condensing)
Dimensions and Weight
Height: 0.9 inch
Width: 3.2 inch
Depth: 1.1 inch
Weight: 1.76 ounce
Included Items
Cables: Micro-USB cable - integrated, Network cable - integrated
Certifications and Listing
Compliant Standards: FCC, Plug and Play, REACH, RoHS
Compliant Standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
ENERGY STAR Certified: No
Warranty
Limited Warranty: 3 Year
Service & Support Details: Limited warranty - 3 years
Service Activation: No
