Product Information

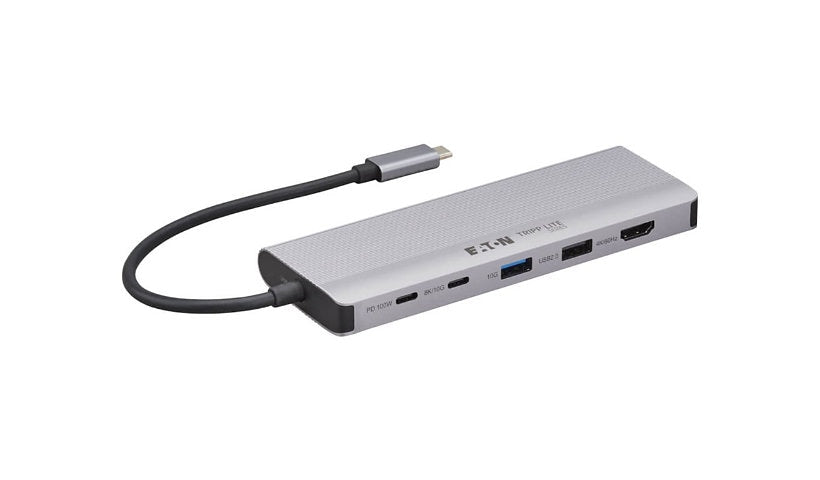

Eaton's U442-DOCK26 makes a multiport workstation out of a Chromebook, Windows laptop or MacBook Pro via its Thunderbolt 4/USB-C port. It sends a single 8K or dual 4K video signal with audio to two HDMI displays, adds USB 3.2 Gen 2 USB-A and USB-C ports plus a USB 2.0 port, and passes up to 100W of PD charging to the host.
Key Features:
- 2x HDMI (single 8K or dual 4K)
- 1x USB-A + 1x USB-C 3.2 Gen 2; 1x USB 2.0
- USB-C PD pass-through up to 100W
- USB4 host; DP Alt Mode; HDR
- Built-in USB-C cable; Color: Black/Gray
Specifications:
- Brand: Eaton
- Manufacturer Part Number: U442-DOCK26
- Color: Black, Gray
- Standards & Compliance: HDCP 1.4, HDCP 2.3, USB 2.0, USB 3.0, USB 3.2 Gen 1, USB 3.2 Gen 2, EN 55032, FCC Part 15 Class B (USA), ICES (Canada), Mexico NOM, Plug and Play, REACH, RoHS 3, UKCA, WEEE
- Host Connection: USB4
- Interface Provided: 1× USB 2.0, 1× USB 3.2 Gen 2-9 pin USB Type A, 1× USB-C 3.2 Gen 2-24 pin USB-C, 1× USB-C 3.2 Gen 2 with Power Delivery 24 pin USB-C (100 Watt passthrough), 2× video HDMI 19 pin HDMI Type A
- Video Interfaces: HDMI, USB-C
- Power Device Type: USB
- Max Operating Temperature: 113 degree Fahrenheit
- Min Operating Temperature: 32 degree Fahrenheit
- Feature Set: 100W power delivery, 36-bit True Color, 4:2:0 chroma subsampling, 4:2:2 profile support, 4:4:4 chroma subsampling, 4K144Hz support, Box package, Display Stream Compression (DSC), DisplayPort Alt Mode, EDID PassThru, HDR Support, Mirror Mode, MST (multi-stream transport), Overcurrent Protection, Overvoltage Protection, Up to 10Gbps data transfer
- Max Resolution Details: 8K 30 Hz
- Product Category: Docking Station
- Cables: 1× USB4 cable integrated 7.9 in
- Listed Dimensions: Height 0.6 in, Width 2 in, Depth 5.7 in
- Weight: 5.29 oz
