Product Information

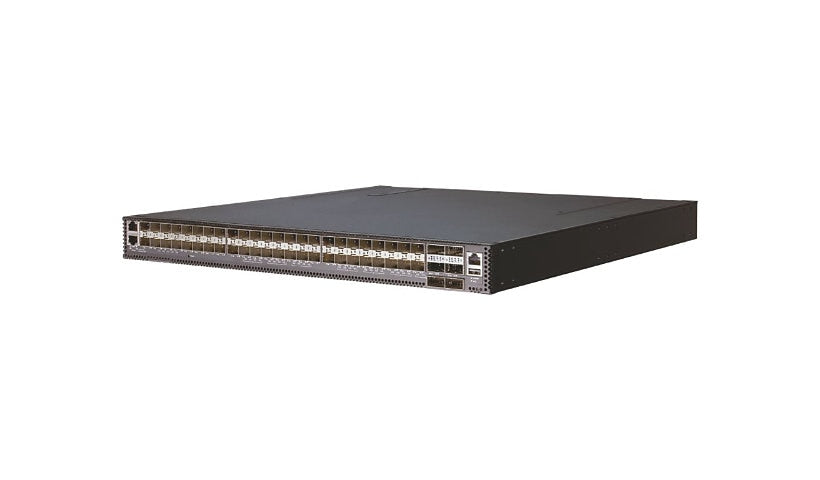

Edgecore's AS5835-54X is an open networking data center switch with 48 1/10G SFP+ ports and six 100G QSFP uplinks. It offers 2.16 Tbps and 1 Bpps, ships with ONIE for loading a network OS, two hot-plug AC power supplies, 4+1 fans and back to front airflow, and it is TAA compliant.
Key Features
- 48 x 1/10G SFP+ ports
- 6 x 100G QSFP uplinks
- 2.16 Tbps switching, 1 Bpps
- ONIE, VXLAN, NVGRE
- 2 hot-plug AC power supplies, 1+1
- Back to front airflow, TAA compliant
Product Information
Brand: Edge-Core
Manufacturer: Edge Core
Product Line: Edge-Core
Model: AS5835-54X
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3
Switching Type: 10 Gigabit Ethernet
Manageable: Yes
Routing Protocol: ECMP
Performance: Forwarding performance: 1 Bpps, Switching capacity: 2.16 Tbps
Capacity: ECMP groups: 4000, Virtual interfaces (VLANs): 4000
MAC Address Table Size: 288K entries
Jumbo Frame Support: 9KB
Stackable: Stackable
Features: 4+1 redundant fans, Hot swappable, IPv4 support, IPv6 support, Load sharing, Metal housing, Network Virtualization using Generic Routing Encapsulation (NVGRE), Open Network Install Environment, Virtual Extensible LAN (VXLAN)
Software Type: Open Network Install Environment
Connectivity
Ports: 48
Port Quantity: 48
Port Type: 1 Gigabit / 10 Gigabit SFP+
Ports (2nd) Quantity: 6
Ports Type (2nd): 100 Gigabit QSFP
Interface Provided: 1 x console RJ-45, 1 x management (Gigabit LAN) RJ-45, 1 x USB Type A, 48 x 1/10Gbit LAN SFP+, 6 x 100Gbit LAN QSFP
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
Power Supplies Installed: 2
Power Supplies Supported: 2
Redundant Power Supply Supported: 1+1
Redundant Power Supply: Yes
Hot-Plug: Hot-plug
Memory and Processor
Processor Brand: Intel
Processor Number: Atom C3558
Processors Installed: 1
Clock Speed: 2.2 GHZ
RAM Installed: 16 GB
Memory Technology: DDR4 SDRAM
Flash Memory Installed: 32 megabyte
Form Factor (RAM): SO-DIMM 260-pin
Technical Information
Min Operating Temperature: 32 degree Fahrenheit
Max Operating Temperature: 104 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Physical Characteristics
Form Factor (Hubs & Switches): Rack-mountable
Airflow Direction: Back to front airflow
Status Indicators: Diagnostic, Fan, Link/activity/speed, Locator, Power 1, Power 2
Dimensions and Weight
Height: 1.7 inch
Width: 17.4 inch
Depth: 18.6 inch
Weight: 19.43 lbs
