Product Information

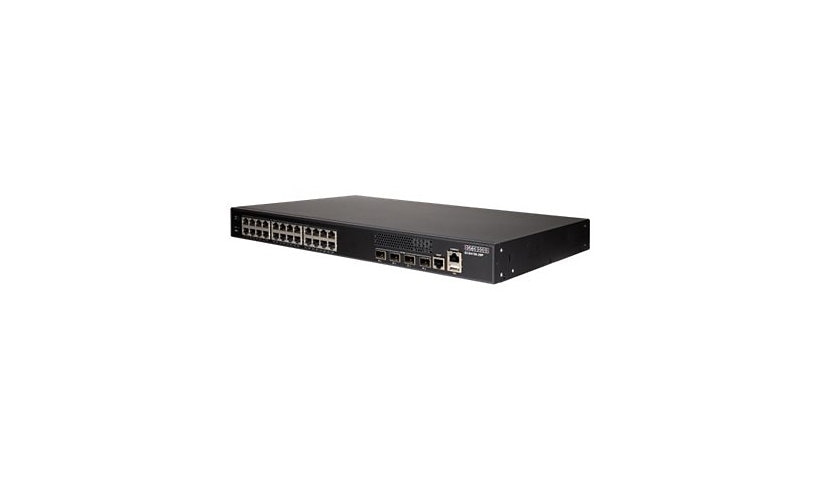

Edgecore's ECS4150-28P is an L2+ managed switch with Layer 3 Lite features, 24 Gigabit PoE+ ports at up to 30 W and four 10G SFP+ uplinks. It has a 370 W PoE budget and 128 Gbps of switching capacity, with DHCP snooping, DoS protection and BPDU guard.
Key Features
- 24 x 10/100/1000 RJ-45 PoE+ ports, 30 W
- 4 x 10G SFP+ uplinks
- 370 W PoE budget
- 128 Gbps switching, 95 Mpps
- L2+, Layer 3 Lite
- Desktop or rack mount
Product Information
Brand: Edge-Core
Manufacturer: Edge Core
Product Line: Edge-Core
Model: ECS4150-28P
Product Type: Switch
Subcategory: Network hubs and switches
Packaged Quantity: 1
Color Category: Black
Network and Communication
Advanced Switching: Layer 3 Lite
Switching Type: Gigabit Ethernet
Manageable: Yes
Remote Management: HTTP, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3, Telnet
Authentication Method: RADIUS, Secure Shell v.2 (SSH2), TACACS+
Performance: Forwarding rate: 95 Mpps, Switching capacity: 128 Gbps
Capacity: VLANs supported: 4000
MAC Address Table Size: 16K entries
Jumbo Frame Support: 10KB
Features: 1.5MB packet buffer, ACL support, Auto-negotiation, Auto-uplink (auto MDI/MDI-X), BPDU Filter, BPDU Guard, BPDU transparent, Denial of Service (DoS), DHCP snooping, DHCPv6 snooping, DiffServ Code Point (DSCP) support, Digital Diagnostics Monitoring (DDM), Dynamic ARP Inspection (DAI), Dynamic power allocation, ecCLOUD support, GARP VLAN Registration Protocol (GVRP), Guest VLAN, IGMP filtering, IGMP immediate leave, IGMP proxy, IGMP querier, IGMP snooping, IGMP throttling, IP Precedence, IP source guard, IP subnet-based VLANs support, Load balancing, Loopback detection, MAC address authentication, MAC based VLAN, mDNS, MLD snooping, Multi-Chassis Link Aggregation (MLAG), Multicast VLAN Registration (MVR), Multiple Spanning Tree Protocol (MSTP) support, Port mirroring, Rapid Spanning Tree Protocol (RSTP) support, Root Guard, sFlow v4, sFlow v5, SNTP support, Spanning Tree Protocol (STP) support, Strict Priority (SP), Syslog support, Trivial File Transfer Protocol (TFTP) support, VLAN support, Voice VLAN, Web authentication, Weighted Round Robin (WRR), Zero-touch provisioning (ZTP)
Connectivity
Ports: 24
Port Quantity: 24
Port Type: 10/100/1000 (PoE)
Ports (2nd) Quantity: 4
Ports Type (2nd): 10 Gigabit SFP+ (uplink)
Interface Provided: 1 x console RJ-45, 1 x management RJ-45, 1 x USB Type A, 24 x 1000Base-T RJ-45 PoE - 30 W, 4 x 10Gbit LAN SFP+ uplink
Power Over Ethernet (PoE): PoE+
Power
Device Type: Internal power supply
Required Voltage: AC 100-240 volt
Frequency: 50/60 hertz
PoE Budget: 370 watt
Memory and Processor
RAM Installed: 1 GB
Flash Memory Installed: 256 megabyte
Technical Information
Min Operating Temperature: 23 degree Fahrenheit
Max Operating Temperature: 113 degree Fahrenheit
Operating Humidity: 5 - 95% (non-condensing)
Min Storage Temperature: -40 degree Fahrenheit
Max Storage Temperature: 158 degree Fahrenheit
Humidity Range Storage: 5 - 95% (non-condensing)
MTBF: 125,675 Hours
Physical Characteristics
Form Factor (Hubs & Switches): Desktop, Rack-mountable
Status Indicators: Link/activity, PoE, Power, System
Rack Mounting Kit: Included
Dimensions and Weight
Height: 1.7 inch
Width: 17.3 inch
Depth: 11 inch
Weight: 10.47 lbs
Included Items
Included Accessories: 4 rubber feet, 4-port dust covers, Grounding cable, Power cord
Cables: 1 x console cable
Certifications and Listing
Compliant Standards: IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, ITU-T G.8032
Compliant Standards: BSMI, CISPR Class A, CSA 22.2 No. 60950-1, CSA C22.2 No. 62368-1, FCC Class A certified, IEC 60950-1, IEC/EN 62368-1, RoHS, UL 60950-1, UL 62368-1, WEEE
ENERGY STAR Certified: No
EPEAT Compliant: No
TCO Certified: No
Warranty
Service Activation: No
