Product Information

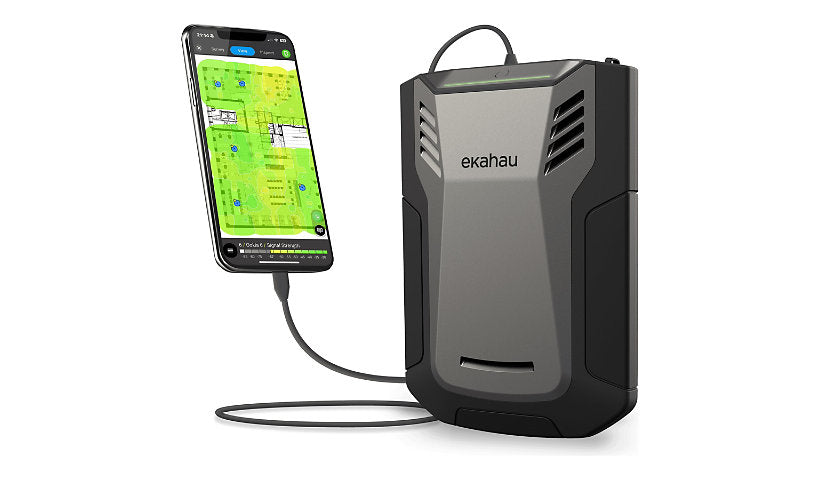

The Ekahau Sidekick 2 (EKA-ESK-2) is a fast, lab calibrated Wi-Fi testing tool for accurate and repeatable signal and spectrum capture, helping you place access points right the first time and catch problems before outages. It covers 2.4, 5 and 6 GHz with a 50 sweeps per second spectrum analyzer, nine custom wideband 3D antennas, quiet active cooling and 120 GB of SSD storage. A 96.4 Wh lithium ion battery gives all day use, and it connects over USB-C. A messenger strap, power adapter and USB-C cable are included, with a 1 year limited warranty.
Key Features
- Wi-Fi survey device
- 2.4, 5 and 6 GHz
- 50 sweeps/s spectrum
- Nine 3D antennas
- 96.4 Wh battery
- 1 year warranty
Product Information
Tests, Tools and Measurements: Cross-talk interference, IEEE 802.11 a/b/g/n/ac/ax discovery, Signal level meter, Spectral noise, Wireless LAN testing
Media: Radio
Brand: Ekahau
Manufacturer: Ekahau
Product Line: Ekahau Sidekick
Model: 2
Product Type: Network tester
Packaged Quantity: 1
Network and Communication
Features: 50 sweeps/second spectrum analyzer, 9 wideband 3D antennas, Built-in 120 GB SSD, Whisper-quiet active cooling, Wi-Fi IEEE 802.11 a/b/g/n/ac/ax; full tri-band (2.4 GHz, 5 GHz, 6 GHz )
Connectivity
Connectors: 24 pin USB type C
Power
Battery Chemistry: Lithium ion
Output Voltage: 20 V
Battery Run Time (Up To): 2 days
Technical Information
Min Operating Temperature: 41 degree Fahrenheit
Max Operating Temperature: 95 degree Fahrenheit
Min Storage Temperature: -4 degree Fahrenheit
Max Storage Temperature: 140 degree Fahrenheit
Dimensions and Weight
Height: 8.9 inch
Width: 6.1 inch
Depth: 1.5 inch
Weight: 2.38 lbs
Included Items
Included Accessories: Messenger strap, Power adapter
Cables: 1 x USB-C to USB-C cable
Warranty
Manufacturer Limited Warranty: 1 year
Not sure this tester or tool fits your job? Send us the cable types, connectors and network speeds you work with, and the DatorPro team will help you pick the right model before you order.
